One-stop Disassembly Platform Tilt Lift

One-stop Disassembly Platform Tilt Lift

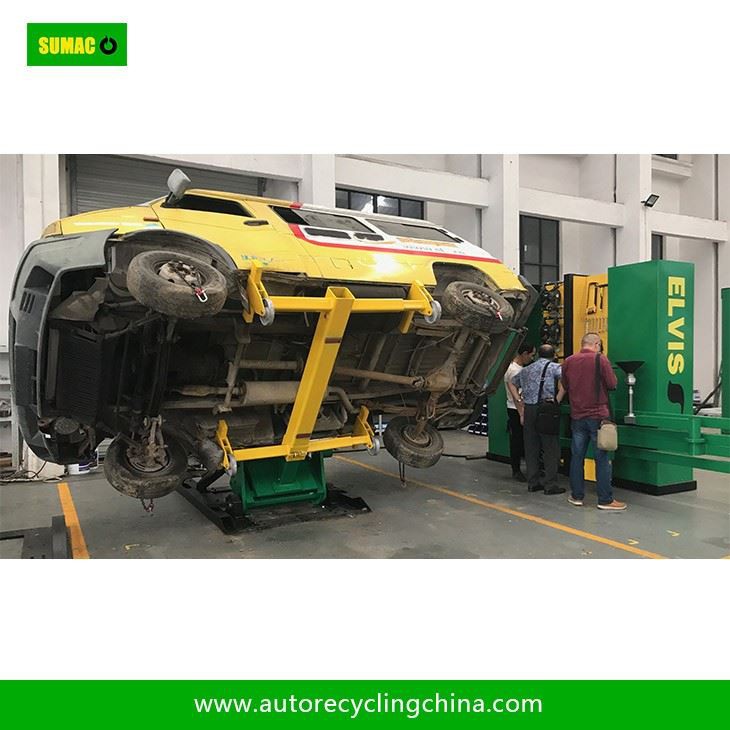

One-stop disassembly platform tilt lift uses a forklift to place the scrap vehicle on the bracket, which can achieve the functions of 90 degrees flipping angle. According to different disassembling requirements, the operator can adjust the angle in all directions according to the requirement.

1.Introduction

★ One-stop disassembly platform tilt lift uses a forklift to place the scrap vehicle on the bracket, which can achieve the functions of 90 degrees flipping angle. According to different disassembling requirements, the operator can adjust the angle in all directions according to the requirement.

★ TL-04 TILT LIFT helps reduce the handling of vehicles to different stations, improve production efficiency and save costs.

★ TL-04 is equipped with mechanical safety lock device, so the vehicle has automatic protection of mechanical safety lock at any position when Tilting.

2.Technical data

Control system: Hydraulic

Loading capacity: 3500kg

Flip angle: 90 degree

Power: 4Kw

Fuel tank capacity: 35L

Machine size: 5000x1650x2500mm

Working area: 7000x6500x4500mm

3.Advantages

◆ All-round disassembling of vehicles

◆ Flip angle over to 90 degree

◆ Hydraulic control

◆ Mechanical safety lock, more safe


4. Customer installation
