1. Introduction

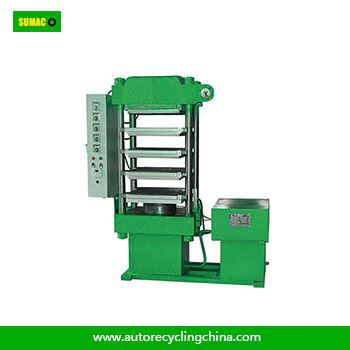

● Recycling used rubber interlocking tile making machine is used to make various types of floor tiles with different diamter as you required. With one set Vulcanizing machine, we can make many types tiles only by changing the moulds.
● This kind machine has three different types, frame type, pillar type and jaw type. It is high efficient with large output, automatic controling, easy operation and safety guaranteed.
● The working layer can be designed as customer's request, 2, 4, 6, etc.
2. Details
1). Item
Four Columniation. Mainframe, crossbeam and oil jointing together.
2). Technical Data
| Model | XLB-D 550x550 |
| Max pressure(Ton) | 50 |
| Heating plate(mm) | 550x550 |
| Product size(mm) | 500x500 |
| Layer distance(mm) | 150~180 |
| workig layer | 4 layers |
| Dia plunger(mm) | Φ200 |
| Plunger stroke(mm) | 450 |
| Total power(Kw) | 23 |
| Plate temperature(°C) | =<200 |
3). Mould
4 pcs of square mould (used to make 500x500mm rubber tile with thickness 15-25mm or 35-50mm) and 8 pcs of under-mould (loading materials for preparation).

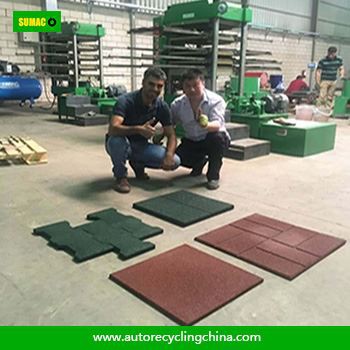

3. Workshop
