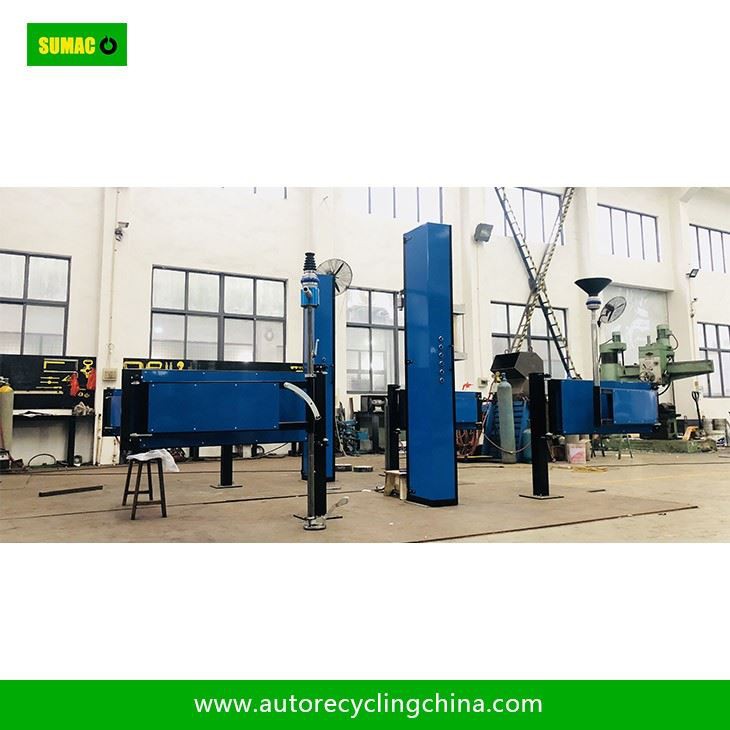

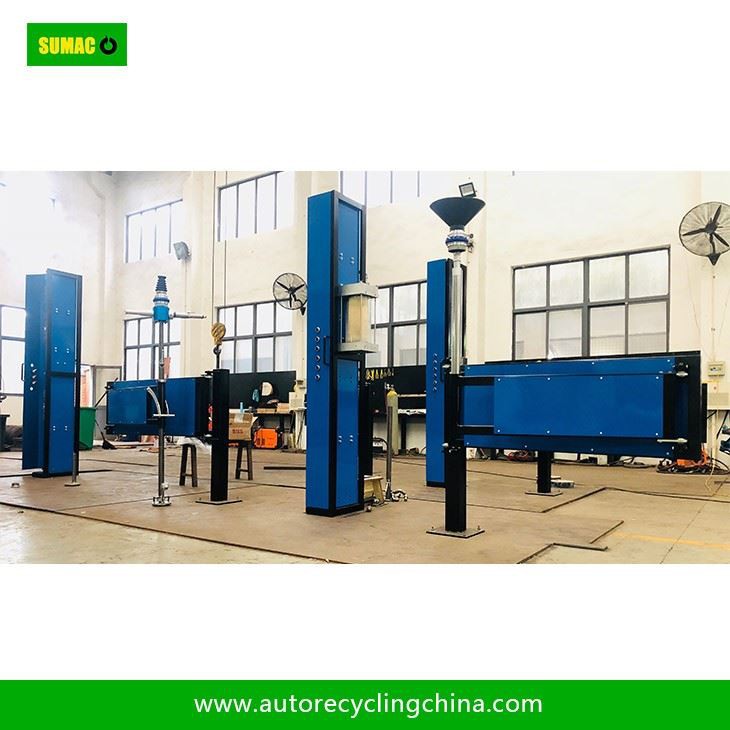

Semi-automatic Car Drain System

Semi-automatic car drain system is a multi-functional drainage system, specially designed for small ELV recycling companies.

1.Introduction

◆ Semi-automatic car drain system is convenient installation and simple operation. In order to ensure the safety of the operation process, the equipments are all pneumatic driven, without any spark.

◆ The arm is flexible, with a large work space and suitable for all types of vehicles.

◆ The powerful air pump and reliable drilling and discharge tools ensure the fast and safe discharge of all liquids in ELV such as gasoline and diesel, screen wash fluid and brake fluid, waste oil, coolant etc.

◆ Optional: The specially designed filter could filter and clean the fuel, greatly improving the utilization of various valuable fuels.

详情2

2.Technical Data

★ Air Supply: 8.5 bar ~ 1.21 l/min

★ Consumption: 2.85 l/vehicle

★ Drainage time: About 10 min/vehicle

★ Fluid Displacement: 14 l/m

★ Engine Oil: 3 l/m

★ Coolant Fluid: 3 l/m

★ Screen wash fluid: 5 l/m, etc.

★ Installation Size: 6000 x 3000 x 2300 mm

3.Advantages

Pneumatic control

Mechanical control of the lifting of drilling device

Whole set supply , no need to install

Large range of arm moving
