1000 Liter Steel Self Bunded Diesel Tank With Pump
video
1000 Liter Steel Self Bunded Diesel Tank With Pump

1000 Liter Steel Self Bunded Diesel Tank With Pump

SUMAC has designed an efficient, cost-effective storage system that provides a practical and safe solution for businesses to store and manage liquid waste.

Introduction

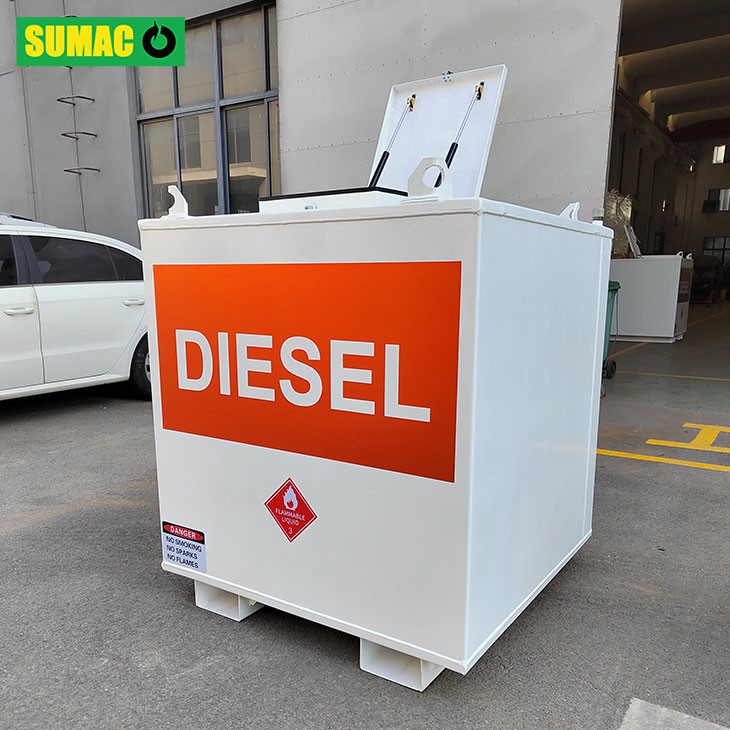

1000 Liter steel self bunded diesel tank with pump

Fuel storage tanks can be used to storage and dispense any liquid that isn't combustible at room temperature, such as coolant, diesel, gasoline, waste oil, and waste fuel.
Since all connections are made through the top, and due to the double wall design, the possibility of leakage into the surrounding area is reduced.
Fuel tanks use a special outlet configuration that pulls from the interior floor to prevent the accumulation of any kind of dirt. The self-bunded tank, which is entirely designed and produced by SUMAC, satisfies industry standards for paint finish and fabrication quality.
For long-term tank fuel or oil storage applications, a rectangular tank design maximizes storage space while preserving full under-self bunded tank visibility.

7

Technical Specification

Model

ARST-1000

Material

Carbon steel

Tank type

Storage and dispensing

Size

1100x1100x1310mm

Volume

1000 litres

Empty Weight

About 460kg

Test pressure

About 35Kpa

Feed/Discharging

1inch

Application

Waste fuel, petrol, waste oil, diesel, coolant, Any liquid,
other than a flammable liquid under normal temperature.

Electric Diesel Pump

220v

Technical Data

Model JYB60
Pump Single phase 220V, DC12V/24V
Flow Meter FM-120L in liter
Hose (Outlet) 4m
Automatic Nozzle Yes
2M Inlet Hose Yes
Flow Rate 20-60L per minute

Features

Meet strict quality standards, CE approved.
All seams are welded to exacting standards.
2 x way forklift pockets.
The tanks come complete with fluid level dipstick, vent pipe and fittings.
Stackable, and with 1pc lockable lids and maintenance hole.
Supplied with all required statutory decals.
Lockable containment area for pump, hose and nozzle storage.
Designed to be stacked for storage and transport empty.
Can be lifted via forklift to ensure ease of access and maneuverability, as well as lifting eyes at each corner.
Removable lid - Easy maintenance and cleaning of carbon steel inner tank.

Packing & Delivery

Package 1

Product Detailes

Product Details

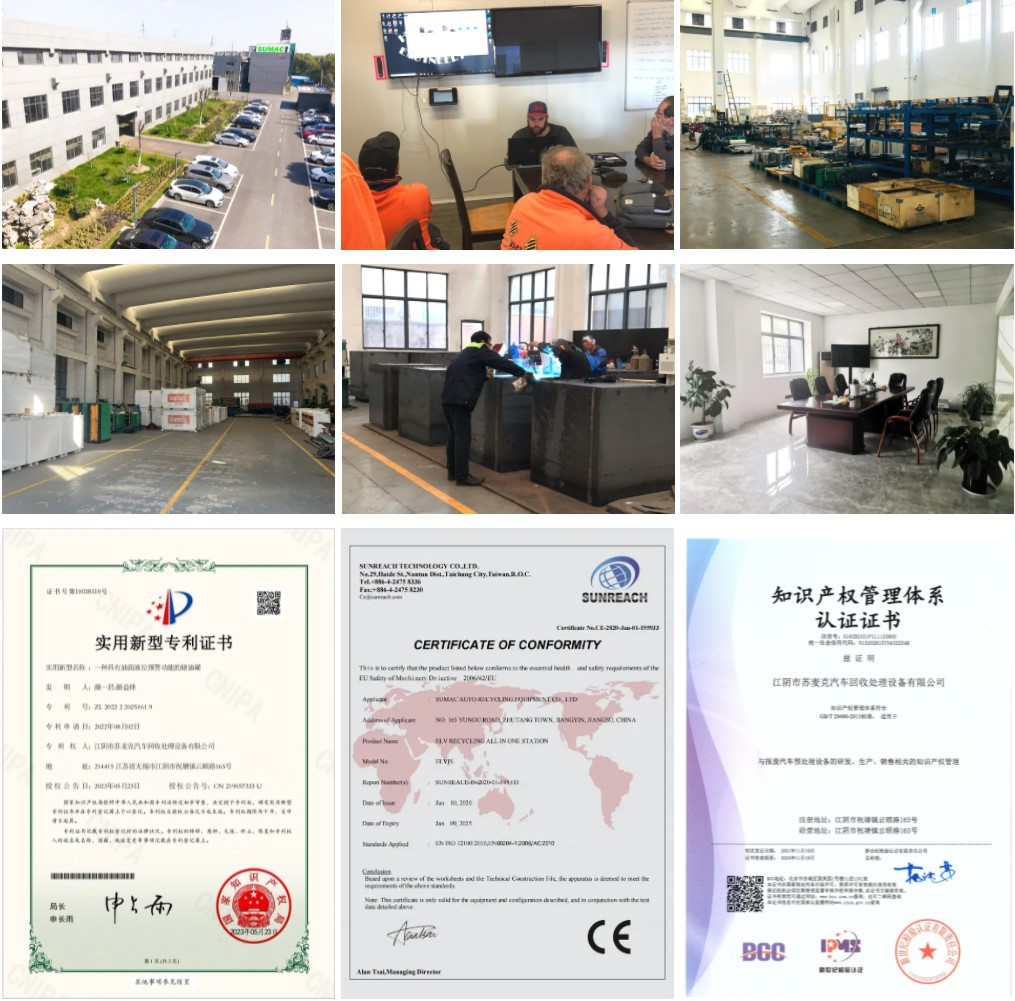

Company Profile

SUMAC Auto Recycling Equipment Co., Ltd, is a Proudly Chinese owned and operated company that manufactures and markets Automatic Waste Tire Recycling Machines, ELV Recycling Machines ( Fuel Drainage Station, All In One Station) and Self Bunded Tanks suitable for storage and dispensing of Diesel, Petrol (Gasoline), Aviation Fuels, Lubricants, Diesel Exhaust Fluid and Waste Oil.
We exported fuel tanks to more than 50 countries, such as USA, Mexico, Canada, Spain, Australia, Singapore,France, Italy, India, etc.
The portable self bunded fuel tank is designed to transport and dispense fuel precisely when and where you need it.

Company 7

FAQ

What is your standard configuration for connections?

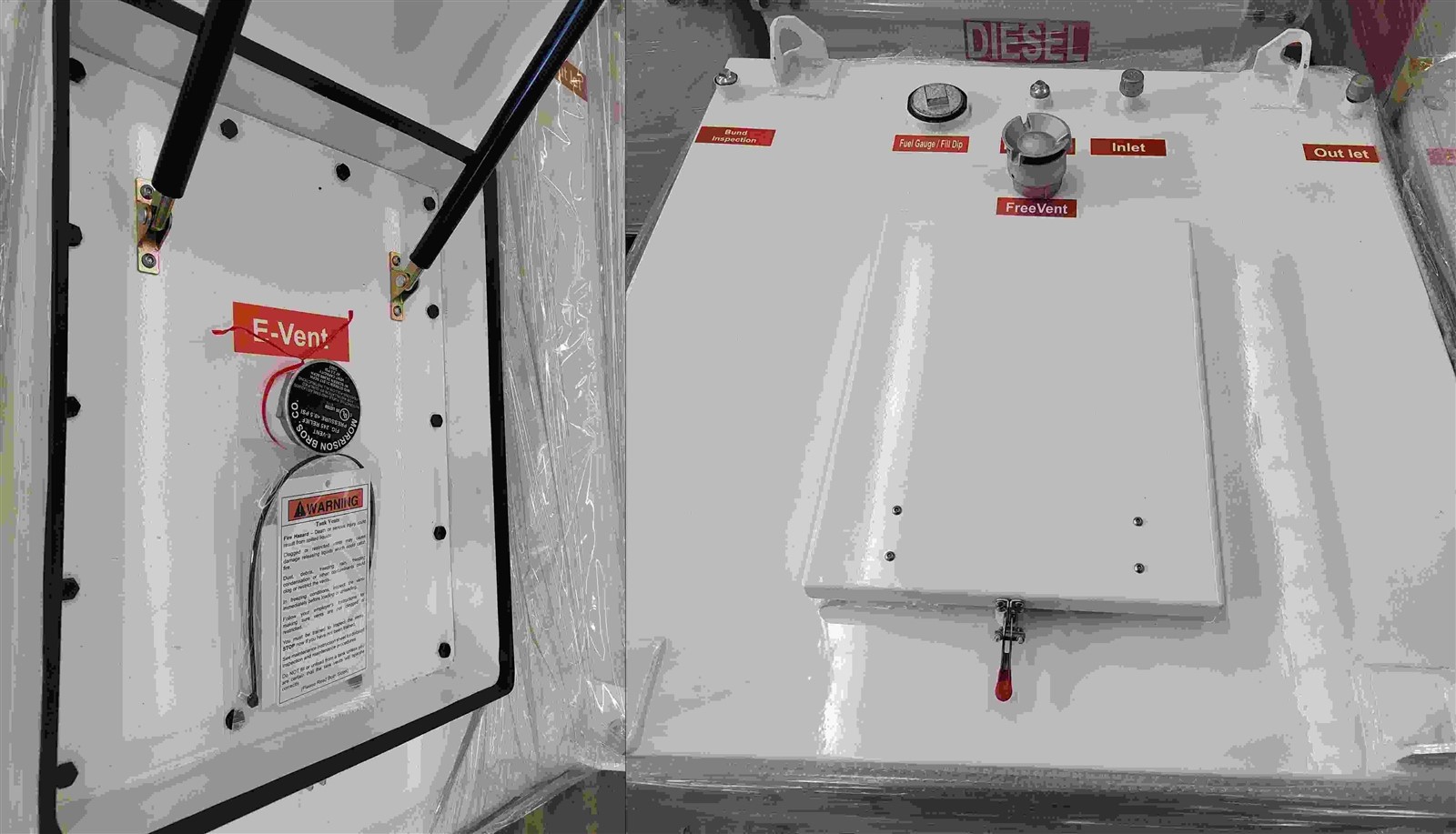

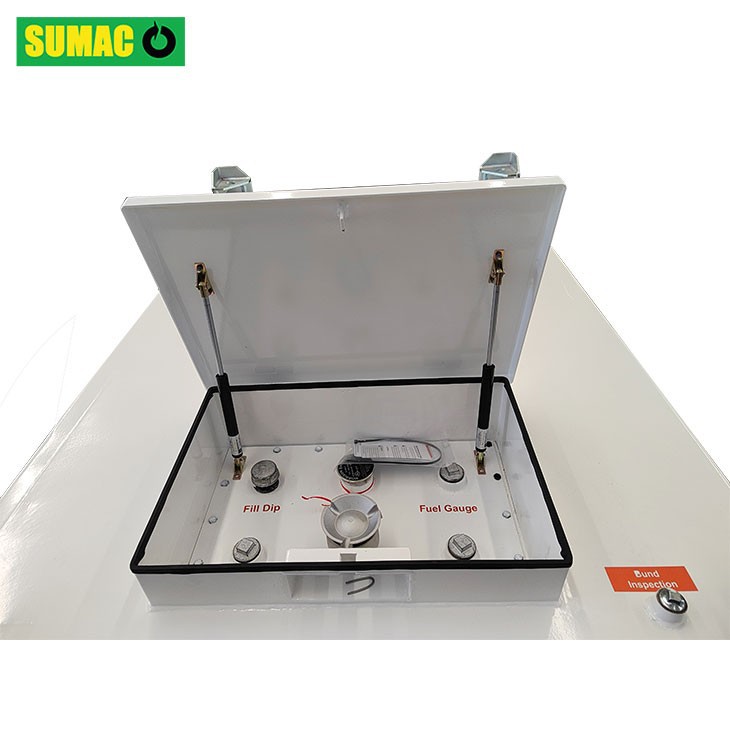

Fill Dip,Inlet,Fuel Gauge,Outlet: DN25
E-Vent,Free Vent: DN50
Can we specify the colour of the tanks and are they painted or powder coated?
Yes, can specify colour, powder coated
Is there any way to check for fluid between the skins (1st and 2nd layer)?
Oil tank with inspection port
Can you confirm if the tanks are supplied with, dip stick & the vent?
Yes
Is there a suction tube on the outlet port for evac of the waste oil?
Yes
