Introduction
1000L To 10000L Vertical Storage Tank Mobile Petrol Station Cube Diesel Fuel Tank With Pump
NW Series fuel IBC tank with fuel pump offers a flexible solution to store combustible liquid (diesel, gasoline, oil, coolant, etc.) and improve fuel dispensing and management solutions. If you're looking for a petrol diesel fuel IBC tank sold directly by the manufacturer, look for Sumac.
Sumac Fuel tanks can provide you greater flexibility and help you save important time because they are made to connect to equipment and deliver fuel simultaneously. Oil tanks are mobile and can go with you, wherever you are and whenever you need them, thanks to their four forklift pockets.
Use Long cycle time, direct sales at factory prices, and Sumac technical team provides you with professional after-sales service! Contact us anytime if you need anything!
Technical Parameters
| Model | NW-1000 | NW-2000 | NW-3000 | NW-4000 | NW-5000 |
| Material | Carbon steel, double wall | ||||
| Tank type | Storage and dispensing | ||||
| Dimension | 1145x1140x1300mm | 2320x1145x1285mm | 1570x2320x1285mm | 2337x2337x1143mm | 2337x2311x1321mm |
| Capacity (Normal/Safe fill (95%)) | 950/900 L | 2090/1987 L | 2980/2831 L | 3785/3596 L | 4600/4368 L |
| Empty Weight | About 440Kg | About 824Kg | About 1042Kg | About 1580Kg | About 1690Kg |
| Test pressure | About 35Kpa | ||||
| Fill Dip, Inlet, Fuel Gauge, Outlet | DN40 | ||||
| E-Vent, Free Vent | DN50 | ||||
Features
All seams are welded to exacting standards.
4 x way forklift pockets - Quick and easy maneuvering and mobility.
The tanks can come complete with fluid level dipstick, vent pipe and fittings.
Stackable, and with lockable lid and manhole.
Supplied with all required statutory decals. Put on your logo is also available.

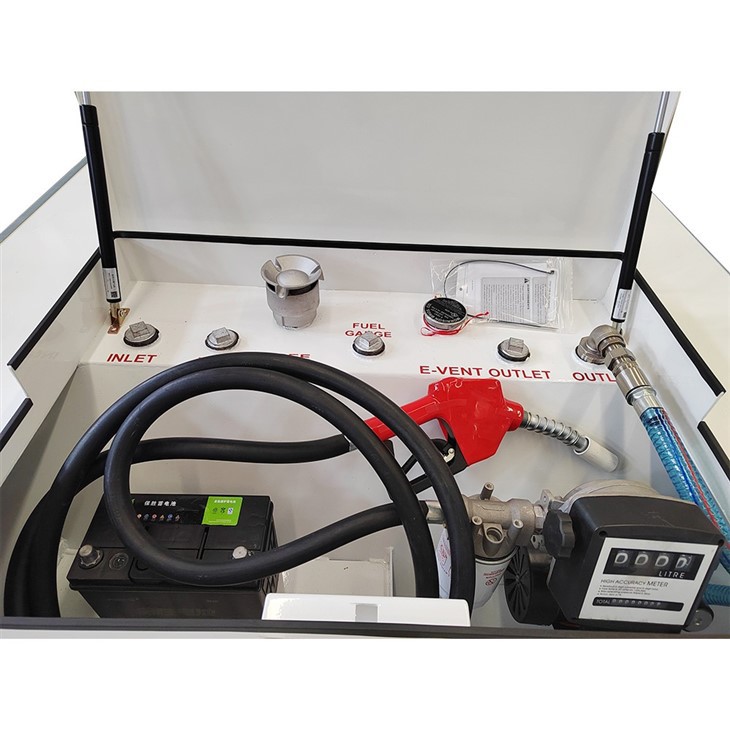

Lockable containment area for pump, hose and nozzle storage.
Designed to be stacked for storage and transport empty.
Can be lifted via forklift to ensure ease of access and maneuverability, as well as lifting ears at each corner.
Removable manhole - Easy maintenance and cleaning of carbon steel inner tank.
Tank Connections
Optional Fittings
Application
About Us
FAQ
Q: What is your standard configuration for connections?
A: Fill Dip,Inlet,Fuel Gauge,Outlet: DN40.
E-Vent,Free Vent: DN50.
Q: Can we specify the colour of the tanks and are they painted or powder coated?
A: Yes, can specify colour, and the tanks are powder coated.
Q: Is there a suction tube on the outlet port for evac of the waste oil?
A: Yes.
Q: For the secondary sealing capacity, whether to increase the capacity of 10% on the basis of the inner tank capacity.
A: Yes.
Q: Can i do your agent in our country or some district?
A: Yes, if you quantity is enough, no problem, the 40HQ container is okay.
Q: Can the machine be customized as our need, such as put on our logo?
A: Surely our machine can be customized as your need, put on your logo is also available.
