Product Introduction

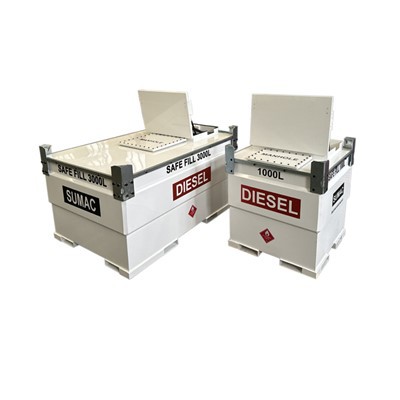

Electric Portable Fuel Gasoline Diesel Cube Transfer Tank For On-Site Refueling
Designed to connect to equipment and dispense fuel at the same time, Sumac Fuel cube tanks can give you more flexibility and save you valuable time. With two forklift pockets for mobility when empty, oil tank can move with you, wherever and whenever you need it.
If you're working on a site with limited access, this tank from Sumac is your portable tank, a fully transportable fuel storage solution that increases productivity.
NW Series Fuel cube tanks with fuel dispensing machine, are the most popular products in the world, which offer a flexible solution to storing combustible liquid (Diesel, gasoline, oil, coolant, etc. ) , as well as improving fuel dispensing and management solutions.
Technical Parameters
| Model | NW-1000 | NW-2000 | NW-3000 | NW-4000 | NW-5000 |
| Material | Carbon steel, double wall | ||||
| Tank type | Storage and dispensing | ||||
| Size mm | 1145x1140x1300 | 2320x1145x1285 | 1570x2320x1285 | 2337x2337x1143 | 2337x2311x1321 |
| Capacity (Normal/Safe fill (95%), L) | 950/900 | 2090/1987 | 2980/2831 | 3785/3596 | 4600/4368 |
| Empty Weight (Kg) | About 440 | About 824 | About 1042 | About 1580 | About 1690 |
| Test pressure (Kpa) | About 35 | ||||
| Fill Dip, Inlet, Fuel Gauge, Outlet | DN40 | ||||
| E-Vent, Free Vent | DN50 | ||||
| Application | Waste fuel, petrol, waste oil, diesel, coolant, Any liquid, | ||||
Come With
Meet strict quality standards, CE approved.
All seams are welded to exacting standards.
4 x way forklift pockets - Quick and easy maneuvering and mobility.
The tanks come complete with fluid level dipstick, vent pipe and fittings.
Stackable, and with 1pc lockable lids and maintenance hole.
Supplied with all required statutory decals.
Lockable containment area for pump, hose and nozzle storage.
Designed to be stacked for storage and transport empty.
Can be lifted via forklift to ensure ease of access and maneuverability, as well as lifting eyes at each corner.
Removable lid - Easy maintenance and cleaning of carbon steel inner tank.
Product Detailes
Packing & Shipping
Company Profile
FAQ
What is your standard configuration for connections?
Fill Dip,Inlet,Fuel Gauge,Outlet: DN25.
E-Vent,Free Vent: DN50.
Can we specify the colour of the tanks and are they painted or powder coated?
Yes, can specify colour, powder coated.
Is there any way to check for fluid between the skins (1st and 2nd layer)?
Oil tank with inspection port.
Can you confirm if the tanks are supplied with, dip stick & the vent?
Yes.
Is there a suction tube on the outlet port for evac of the waste oil?
Yes.
For the secondary sealing capacity, whether to increase the capacity of 10% on the basis of the inner tank capacity.
Yes.
