Movable Refueling Mini Mobile Diesel Gas Station Fuel Cube Tank With Pump
video
Movable Refueling Mini Mobile Diesel Gas Station Fuel Cube Tank With Pump

Movable Refueling Mini Mobile Diesel Gas Station Fuel Cube Tank With Pump

SUMAC has designed an efficient, cost-effective storage system that provides a practical and safe solution for businesses to store and manage liquid waste.

Introduction

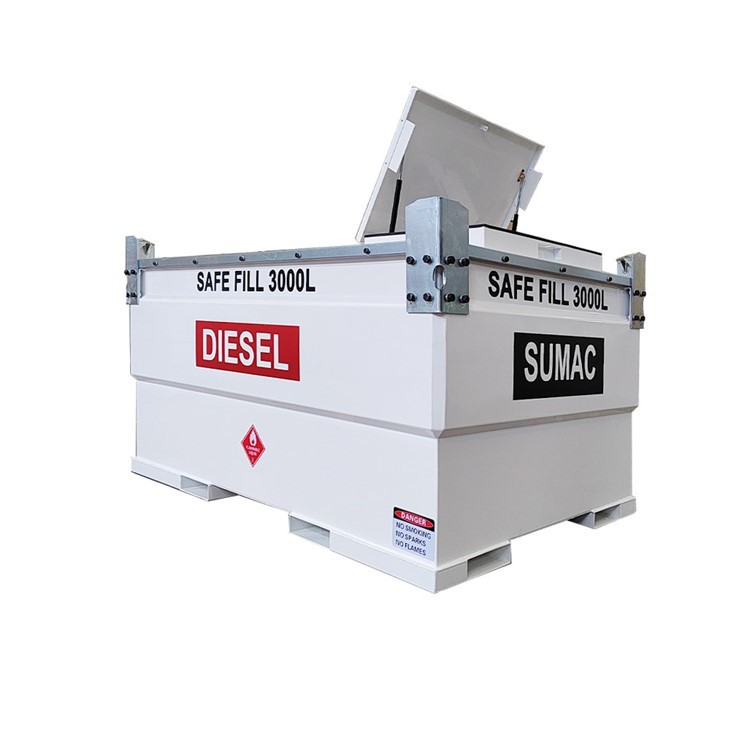

Movable refueling mini mobile diesel gas station fuel cube tank with pump

SUMAC has designed an efficient, cost-effective storage system that provides a practical and safe solution for businesses to store and manage liquid waste.

A versatile way to store flammable liquids (such as diesel, gasoline, oil, coolant, etc.) and enhance fuel management and dispensing is provided by the NW Series fuel IBC tank with fuel pump. Look for Sumac if you're looking for an IBC tank that is directly sold by the manufacturer that holds gasoline or diesel fuel.
Fuel cube tanks can provide you greater flexibility and help you save important time because they are made to connect to equipment and deliver fuel simultaneously. Oil tanks are mobile and can go with you, wherever you are and whenever you need them, thanks to their four forklift pockets.
Use Long cycle time, direct sales at factory prices, and Sumac technical team provides you with professional after-sales service! Contact us anytime if you need anything!

NW tank

Technical Parameters

Model

NW-1000

NW-2000

NW-3000

NW-4000

NW-5000

Material

Carbon steel, double wall

Tank type

Storage and dispensing

Dimension

1145x1140x1300mm 2320x1145x1285mm 1570x2320x1285mm

2337x2337x1143mm

2337x2311x1321mm

Capacity
(Normal/Safe fill (95%))

950/900 L

2090/1987 L

2980/2831 L

3785/3596 L

4600/4368 L

Empty Weight

About 440Kg

About 824Kg

About 1042Kg

About 1580Kg

About 1690Kg

Test pressure

About 35Kpa

Fill Dip, Inlet, Fuel Gauge, Outlet

DN40

E-Vent, Free Vent

DN50

Features
All seams are welded to exacting standards.
4 x way forklift pockets - Quick and easy maneuvering and mobility.
The tanks can come complete with fluid level dipstick, vent pipe and fittings.
Stackable, and with lockable lid and manhole.
Supplied with all required statutory decals. Put on your logo is also available.

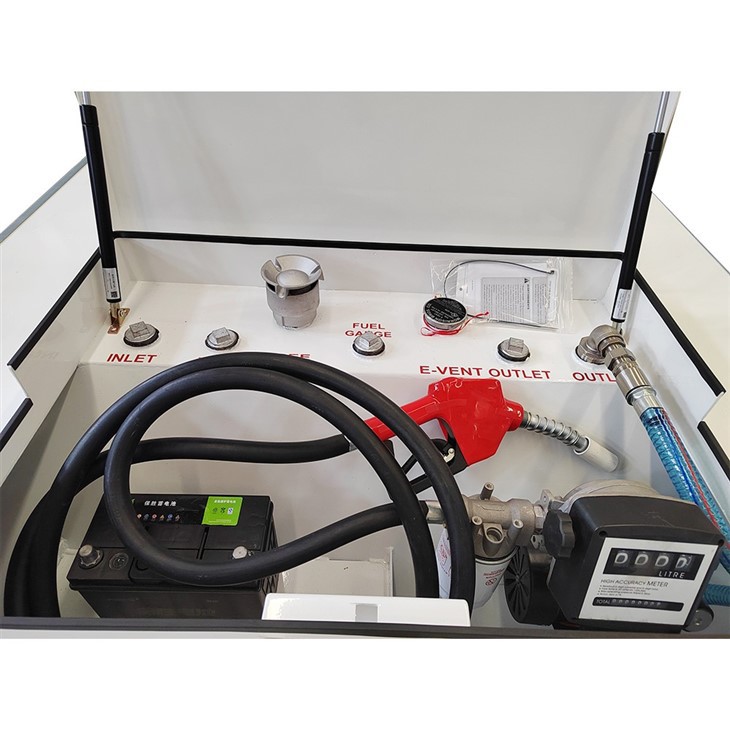

Lockable containment area for pump, hose and nozzle storage.
Designed to be stacked for storage and transport when full and empty oil.
Can be lifted via forklift to ensure ease of access and maneuverability, as well as lifting ears at each corner.
Removable manhole - Easy maintenance and cleaning of carbon steel inner tank.

Tank Connections

5

Optional Fittings

Option

Application

Application

About Us

Company 8

FAQ
Q: Can we specify the colour of the tanks and are they painted or powder coated?
A: Yes, can specify colour, and the tanks are powder coated.

Q: Is there a suction tube on the outlet port for evac of the waste oil?

A: Yes.

Q: For the secondary sealing capacity, whether to increase the capacity of 10% on the basis of the inner tank capacity.

A: Yes.

Q: Can i do your agent in our country or some district?
A: Yes, if you quantity is enough, no problem, the 40HQ container is okay.

Q: Can the machine be customized as our need, such as put on our logo?

A: Surely our machine can be customized as your need, put on your logo is also available.
