OEM/ODM Safety Double-wall Above Ground Oil Fuel Diesel Storage Cube Tank
video
OEM/ODM Safety Double-wall Above Ground Oil Fuel Diesel Storage Cube Tank

OEM/ODM Safety Double-wall Above Ground Oil Fuel Diesel Storage Cube Tank

Diesel fuel tank is suitable for the storage and dispensing of Diesel, Petrol, Waste Oil, Waste fuel, Coolant, any liquid, other than a flammable liquid under normal temperature.

Introduction

OEM/ODM safety double-wall above ground oil fuel diesel storage cube tank

Diesel fuel tank is suitable for the storage and dispensing of Diesel, Petrol, Waste Oil, Waste fuel, Coolant, any liquid, other than a flammable liquid under normal temperature.
All connections are through the top and the double wall design makes them self bunded, eliminating the chance of leakage into the environment.
Fuel tanks have a unique outlet arrangement that draws from the floor of the inner preventing build up of any type of sediment.
Fully designed and manufactured by SUMAC, the self bunded tank meets the industry standard for fabrication quality, and paint finish.
Rectangular tank profile, maximises storage footprint whilst maintaining full under self bunded tank visibility for long term tank fuel / oil storage applications.

20231127120341

Specification

Model

ARST-2000

Material

Carbon steel

Tank type

Storage and dispensing

Size

2180x1420x1305mm

Volume

2000 litres

Empty Weight

About 960Kg

Test pressure

About 35Kpa

Fill Dip, Inlet, Fuel Gauge, Outlet

DN40

E-Vent, Free Vent DN50

Application

Waste fuel, petrol, waste oil, diesel, coolant, Any liquid,
other than a flammable liquid under normal temperature.

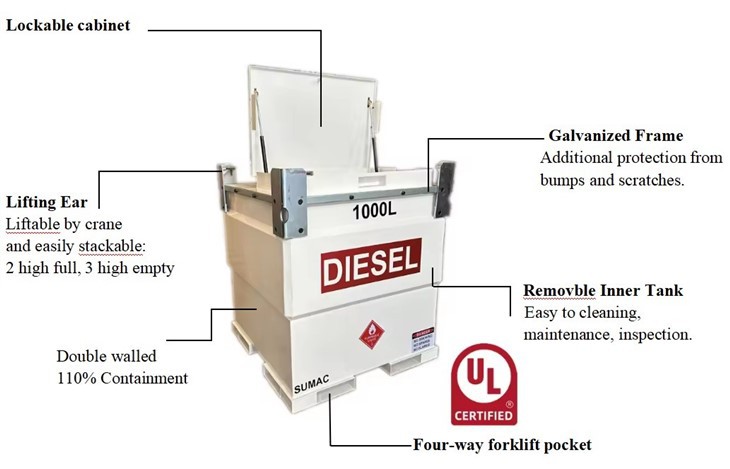

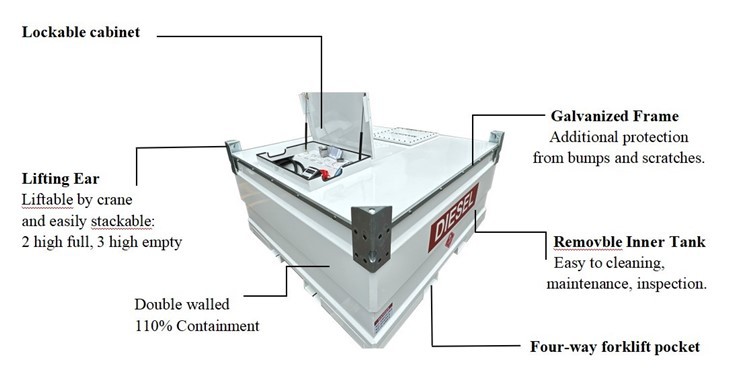

Come With

Meet strict quality standards.
All seams are welded to exacting standards.

Four-way forklift pockets.
The tanks can fit with SUMAC supplied free vent, gravity outlet valve and dipstick.
Stackable, with lockable lid and manhole.
Supplied with all required statutory decals. Put on your logo is also available.

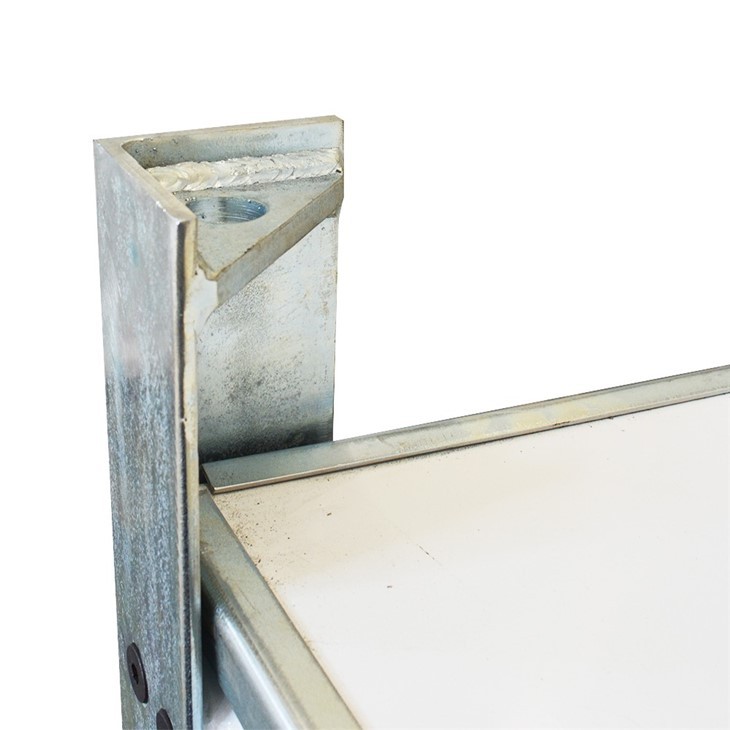

Galvanized frame and lifting ear - strong, durable and safe construction with added protection against collisions and scratches.
Can be lifted via forklift to ensure ease of access and maneuverability, as well as lifting ears at each corner.
Removable lid - Easy maintenance and cleaning of carbon steel inner tank.

Details

Details of 2000L

Optional Fittings

Connections 3

Package & Delivery

Plastic film and bubble wrap package, load into the container.

Package Delivery

Similar Product

Similar product 2000L

Technical Team

Our Team

Application

  • Construction sites: Construction sites often use fuel tanks to store diesel for heavy machinery such as generators, excavators, bulldozers and cranes. They provide a convenient, portable fuel storage solution, ensuring equipment stays fueled without the need for frequent refueling.
  • Agriculture: Farmers and agricultural workers use fuel tanks to store diesel fuel for tractors, harvesters, and other agricultural machinery. These tanks can be conveniently placed on farms and rural land to provide a reliable source of fuel for equipment used in planting, harvesting and other agricultural activities.
  • Remote areas: Fuel tanks are ideal for traveling to remote areas or temporary job sites where refueling stations may be limited or non-existent. They can be easily transported and placed wherever needed, providing a reliable supply of fuel to equipment and vehicles in remote locations such as mining sites, logging sites and construction projects in rural areas.
  • Emergency Backup Power: Fuel tanks can serve as backup fuel storage for emergency generators in facilities such as hospitals, data centers, telecommunications facilities, and critical infrastructure sites. They ensure these facilities have a continuous supply of fuel to power critical equipment during power outages or emergencies.

Application
