Introduction

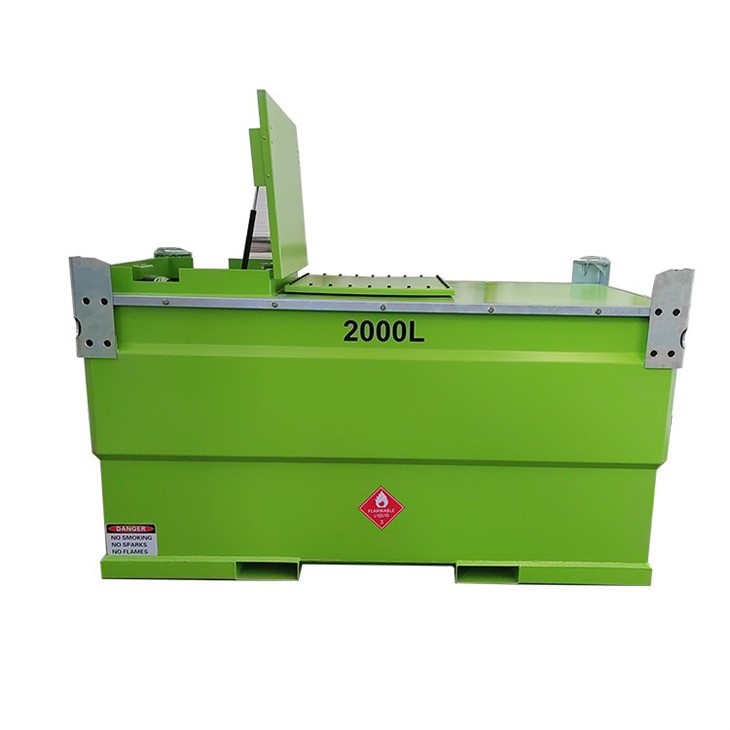

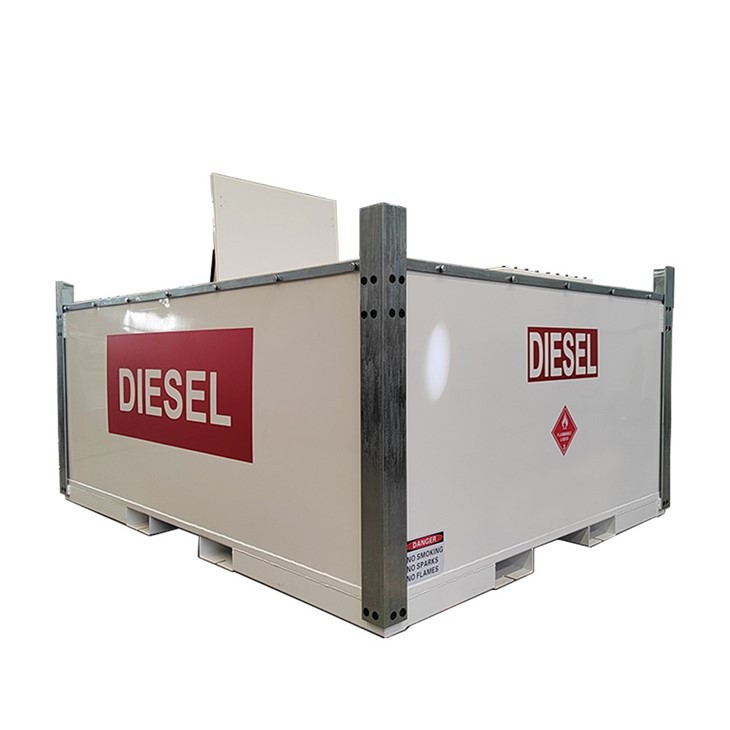

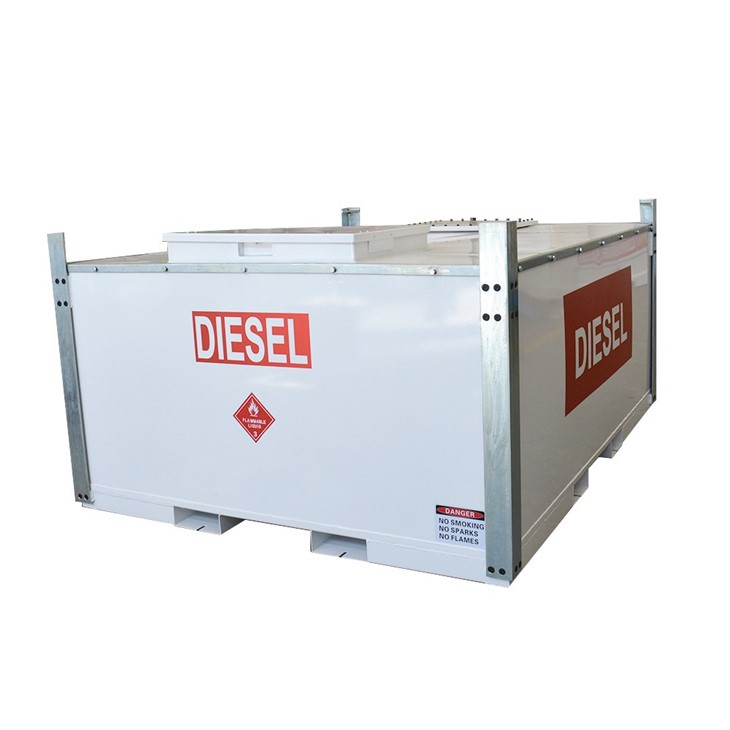

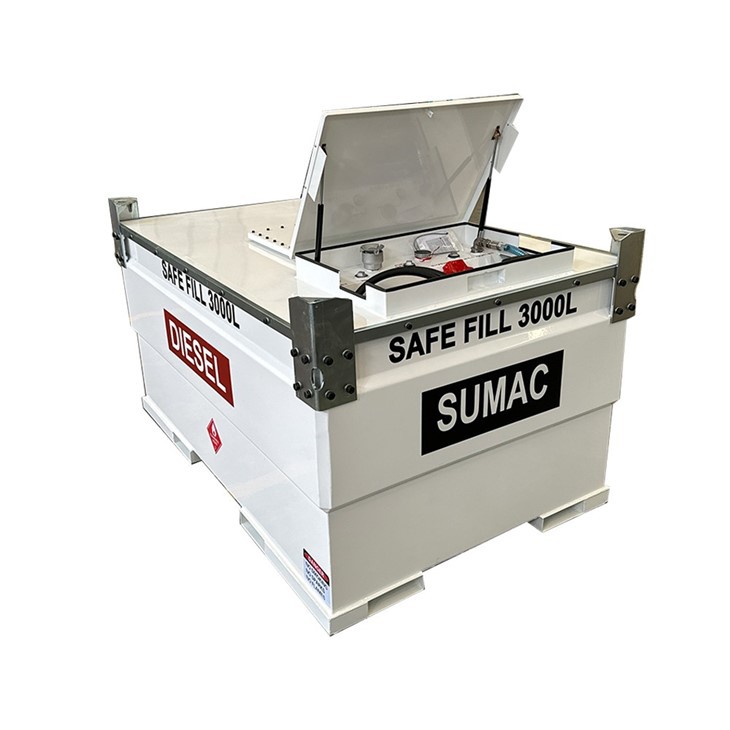

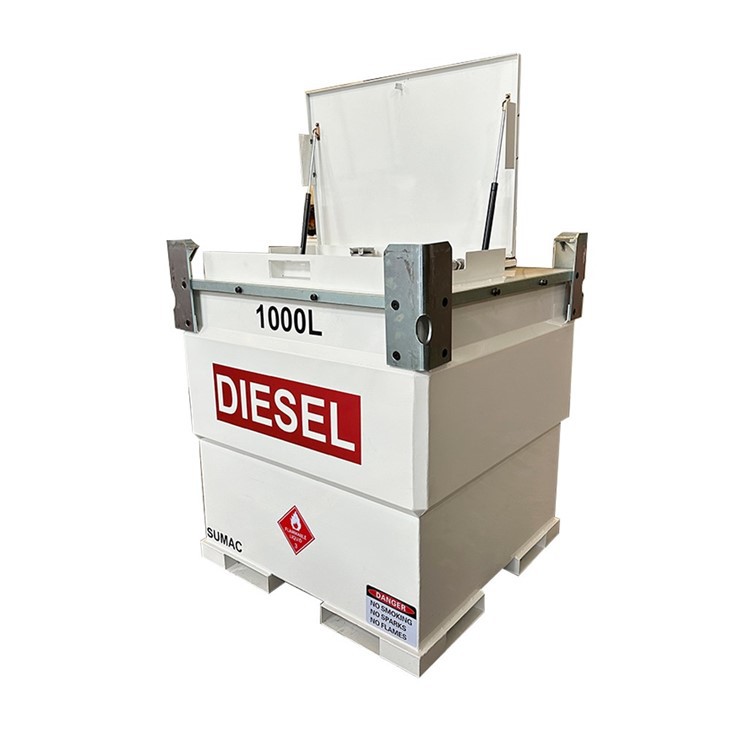

Portable container fuel mini gas station mobile diesel fuel 1000L to 10000L tank with pump
NW Series fuel IBC tank with fuel pump offers a flexible solution to store combustible liquid (diesel, gasoline, oil, coolant, etc.) and improve fuel dispensing and management solutions. If you're looking for a petrol diesel fuel IBC tank sold directly by the manufacturer, look for Sumac.
Sumac Fuel tanks can provide you greater flexibility and help you save important time because they are made to connect to equipment and deliver fuel simultaneously. Oil tanks are mobile and can go with you, wherever you are and whenever you need them, thanks to their four forklift pockets.
Use Long cycle time, direct sales at factory prices, and Sumac technical team provides you with professional after-sales service.
Technical Parameters
Model | NW-1000 | NW-2000 | NW-3000 | NW-4000 | NW-5000 |
Material | Carbon steel, double wall | ||||
Tank type | Storage and dispensing | ||||
Dimension | 1145x1140x1300mm | 2320x1145x1285mm | 1570x2320x1285mm | 2337x2337x1143mm | 2337x2311x1321mm |
Capacity (Normal/Safe fill (95%)) | 950/900 L | 2090/1987 L | 2980/2831 L | 3785/3596 L | 4600/4368 L |
Empty Weight | About 440Kg | About 824Kg | About 1042Kg | About 1580Kg | About 1690Kg |
Test pressure | About 35Kpa | ||||
Fill Dip, Inlet, Fuel Gauge, Outlet | DN40 | ||||
E-Vent, Free Vent | DN50 |
Features
All seams are welded to exacting standards.
4 x way forklift pockets - Quick and easy maneuvering and mobility.
The tanks can come complete with fluid level dipstick, vent pipe and fittings.
Stackable, and with lockable lid and manhole.
Supplied with all required statutory decals. Put on your logo is also available.
Lockable containment area for pump, hose and nozzle storage.
Designed to be stacked for storage and transport empty.
Can be lifted via forklift to ensure ease of access and maneuverability, as well as lifting ears at each corner.
With manhole - Easy maintenance and cleaning of carbon steel inner tank.
Tank Connections
Optional Fittings
Application
Transportation: Diesel fuel tanks are essential components of diesel-powered vehicles, including trucks, buses, trains, ships, and construction equipment. These tanks store the fuel necessary for propulsion and operation.
Backup Power Generation: Diesel generators often have built-in fuel tanks or require external diesel fuel tanks to store fuel for emergency power generation during outages or in remote areas where grid power is unavailable.
Agriculture: Diesel fuel tanks are used in farming equipment such as tractors, combines, and irrigation pumps to power machinery for planting, harvesting, and irrigation.
Construction and Mining: Heavy machinery used in construction and mining, such as bulldozers, excavators, and dump trucks, typically run on diesel fuel and require sizable fuel tanks for extended operation in remote or rugged environments.
Industrial Machinery: Many industrial applications, such as manufacturing plants, warehouses, and factories, rely on diesel-powered machinery for various processes. Diesel fuel tanks are integral to these operations to ensure uninterrupted production.
Marine: Diesel fuel tanks are essential components of marine vessels, including ships, boats, and yachts. These tanks store the fuel required for propulsion and onboard systems.
Remote Power Stations: Diesel fuel tanks are used in remote power stations where access to electricity from the grid is limited or nonexistent. These stations generate electricity using diesel generators and require large fuel storage capacity.
Mobile Refueling Stations: Portable diesel fuel tanks or tanker trucks serve as mobile refueling stations for vehicles, machinery, and equipment operating in remote locations or during emergencies.
Standby Fuel Storage: Diesel fuel tanks are often used as standby fuel storage for facilities such as hospitals, data centers, telecommunications towers, and military installations to ensure uninterrupted operations during power outages or emergencies.
Aviation: Some small aircraft, particularly turboprop and piston-engine planes, use diesel fuel as an alternative to aviation gasoline (avgas). Diesel fuel tanks in aircraft store the fuel needed for propulsion.
About Us
FAQ
Q: Are your oil tanks rust-proof?
A: Yes, our paint is electrostatic spraying of polyester powder, we called powder coating paint, oil resistance, antirust treatment.
Q: Is the fuel tank easy for land transport?
A: Yes.
Q: Does the fuel tank has lockable cabinets for pump?
A: Yes.
Q: Can it come with fuel pump?
A: Yes, we can equip with different kinds of fuel pump according to customer needs.
Q: Does the tank come with forklift pockets?
A: Yes. 4 Way forklift pockets.
Q: Is it with lifting lugs?
A: Yes. Galvanized Lift Full Crane Lugs on Each Corner.
Q: Is the tank easy to shipment?
A: Yes, the height of our fuel tank is designed according to the size of the container and can be stacked.
Q: Can the tank be customized?
A: Yes, Sumac has a professional design and engineering team that can customize the tank according to customers requirements.
