Introduction

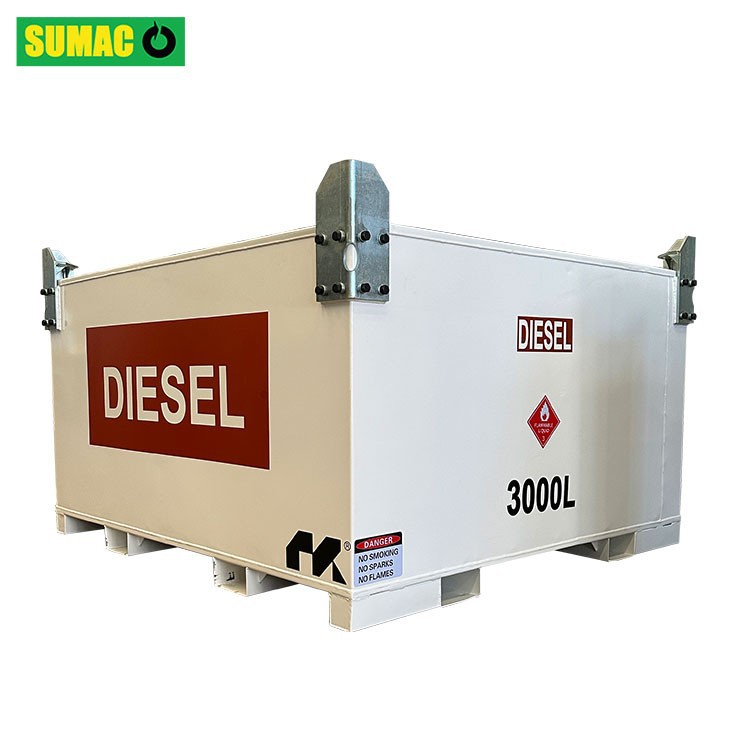

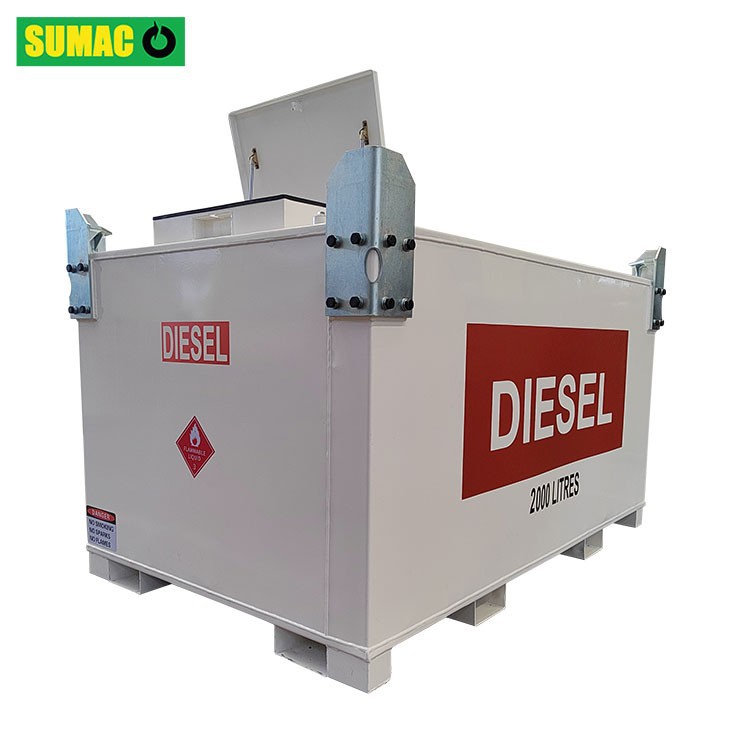

Portable diesel fuel cube tank
Diesel fuel tank is suitable for the storage and dispensing of Diesel, Petrol, Waste Oil, Waste fuel, Coolant, any liquid, other than a flammable liquid under normal temperature.
All connections are through the top and the double wall design makes them self bunded, eliminating the chance of leakage into the environment.
Fuel tanks have a unique outlet arrangement that draws from the floor of the inner preventing build up of any type of sediment.
Fully designed and manufactured by SUMAC, the self bunded tank meets the industry standard for fabrication quality, and paint finish.
Rectangular tank profile, maximises storage footprint whilst maintaining full under self bunded tank visibility for long term tank fuel / oil storage applications.
Specification
Model | ARST-2000 |
Material | Carbon steel |
Tank type | Storage and dispensing |
Size | 2180x1420x1305mm |
Volume | 2000 litres |
Empty Weight | About 960Kg |
Test pressure | About 35Kpa |

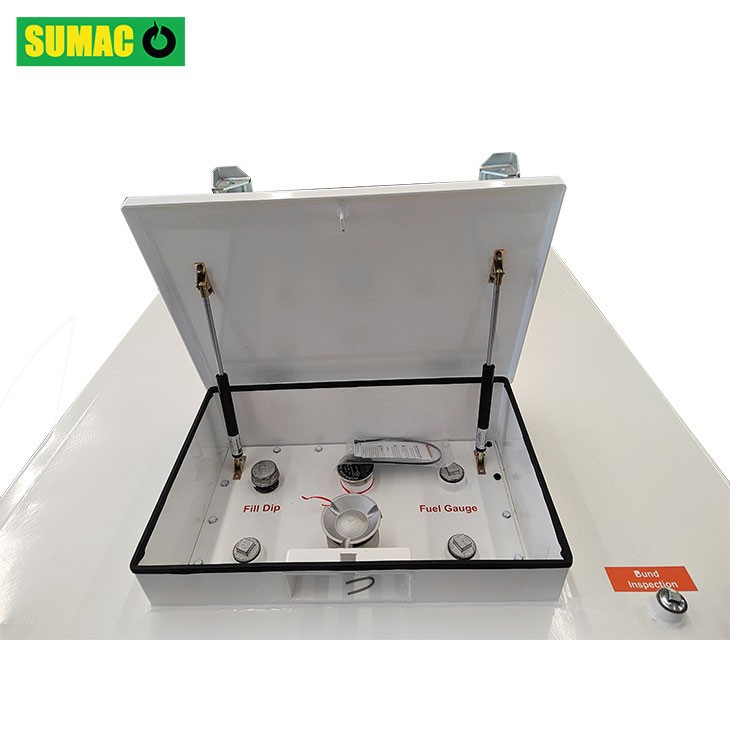

Fill Dip, Inlet, Fuel Gauge, Outlet | DN40 |
E-Vent, Free Vent | DN50 |
Come With
All seams are welded to exacting standards.
Four-way forklift pockets.
The tanks can fit with SUMAC supplied free vent, gravity outlet valve and dipstick.
Stackable, with lockable lid and manhole.
Supplied with all required statutory decals. Put on your logo is also available.
Galvanized frame and lifting ear - strong, durable and safe construction with added protection against collisions and scratches.
Can be lifted via forklift to ensure ease of access and maneuverability, as well as lifting ears at each corner.
Removable lid - Easy maintenance and cleaning of carbon steel inner tank.
Details
Optional Fittings
Package & Delivery
Plastic film and bubble wrap package, load into the container.
Similar Product
Technical Team
FAQ
What is your standard configuration for connections?
Fill Dip,Inlet,Fuel Gauge,Outlet: DN40.
E-Vent,FreVent: DN50.
Can we specify the color of the tanks and are they painted or powder coated?
Yes, can specify color, and our tanks are powder coated.
Is there any way to check for fluid between the skins (1st and 2nd layer)?
Oil tank with inspection port.
Can you confirm if the tanks are supplied with, dip stick & the vent?
Yes.
Is there a suction tube on the outlet port for evac of the waste oil?
Yes.
For the secondary sealing capacity, whether to increase the capacity of 10% on the basis of the inner tank capacity?
Yes.
Can i do your agent in our country or some district?
Yes, if you quantity is enough, no problem, the 40HQ container is okay.
