Portable Double Walled Fuel Diesel Cube Tank With Pump
video
Portable Double Walled Fuel Diesel Cube Tank With Pump

Portable Double Walled Fuel Diesel Cube Tank With Pump

SUMAC has designed an efficient, cost-effective storage system that provides a practical and safe solution for businesses to store and manage liquid waste.

Introduction

Portable Double Walled Fuel Diesel Cube Tank With Pump

On-site, even in remote locations, the Fuel storage tank guarantees a consistent, environmentally safe source of fuel, letting you run without interruption.
Designed to connect to equipment and dispense fuel at the same time, Sumac Fuel tanks can give you more flexibility and save you valuable time. With two forklift pockets for mobility when empty, oil tank can move with you, wherever and whenever you need it.
All connections are through the top and the double wall design makes them self bunded, eliminating the chance of leakage into the environment.
Fuel tanks have a unique outlet arrangement that draws from the floor of the inner preventing build up of any type of sediment.

2

5

Technical Parameters

Model

NW-1000 with pump

Material

Carbon steel

Tank type

Storage and dispensing

Size

1145x1145x1305mm

Volume

1000 litres

Empty Weight

About 450kg

Test pressure

About 35Kpa

Feed/Discharging

1inch

Application

Waste fuel, petrol, waste oil, diesel, coolant, Any liquid,
other than a flammable liquid under normal temperature.

Features

Meet strict quality standards, CE approved.
All seams are welded to exacting standards.
4 x way forklift pockets - Quick and easy maneuvering and mobility.
The tanks come complete with fluid level dipstick, vent pipe and fittings.

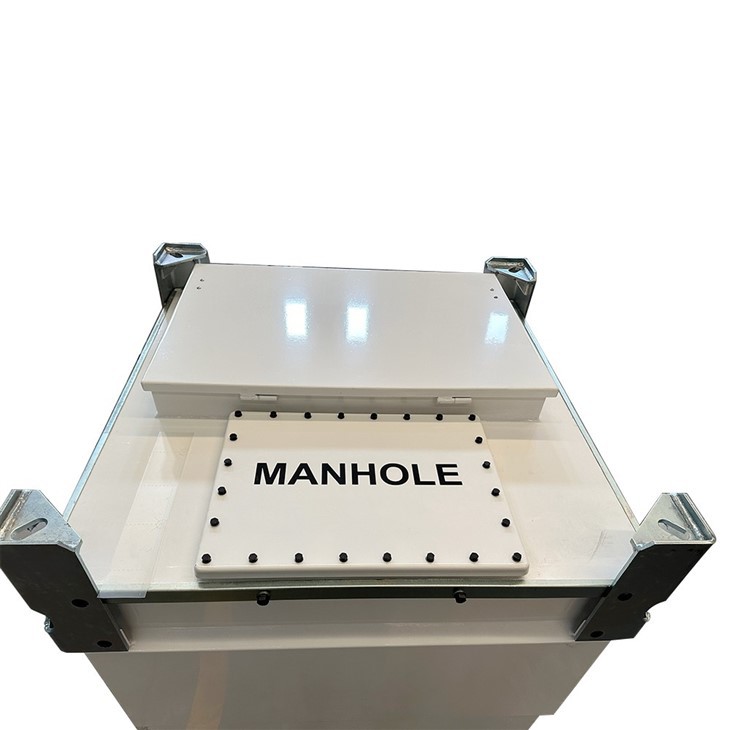

Stackable, and with 1pc lockable lids and maintenance hole.
Supplied with all required statutory decals.

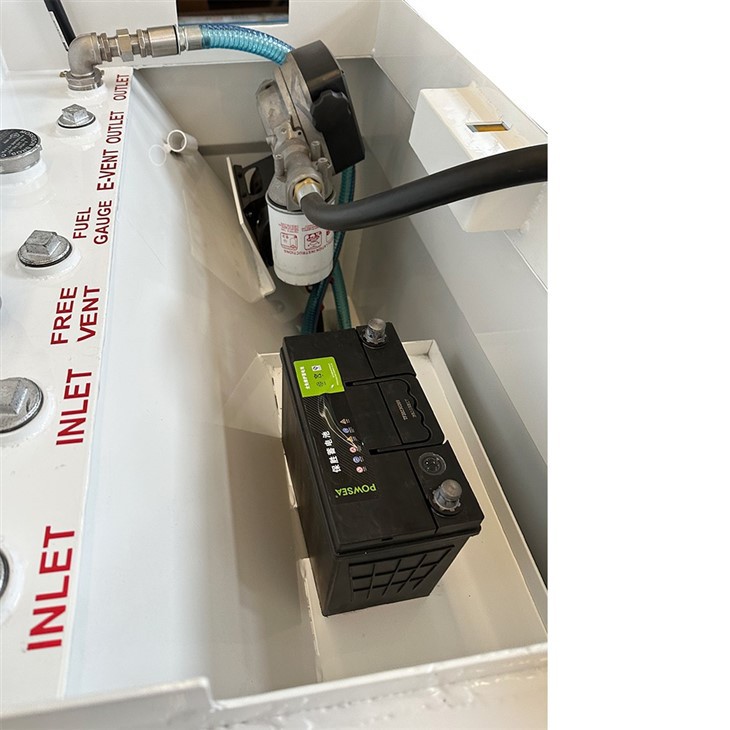

Lockable containment area for pump, hose and nozzle storage.
Designed to be stacked for storage and transport empty.
Can be lifted via forklift to ensure ease of access and maneuverability, as well as lifting eyes at each corner.
Removable lid - Easy maintenance and cleaning of carbon steel inner tank.

Packing & Delivery

Packing Shipping 1

Product Detailes

Tank Connections

Company Profile

SUMAC Auto Recycling Equipment Co., Ltd, is a Proudly Chinese owned and operated company that manufactures and markets Automatic Waste Tire Recycling Machines, ELV Recycling Machines ( Fuel Drainage Station, All In One Station) and Self Bunded Tanks suitable for storage and dispensing of Diesel, Petrol (Gasoline), Aviation Fuels, Lubricants, Diesel Exhaust Fluid and Waste Oil.
We exported fuel tanks to more than 50 countries, such as USA, Mexico, Canada, Spain, Australia, Singapore,France, Italy, India, etc.
The portable self bunded fuel tank is designed to transport and dispense fuel precisely when and where you need it.

Company 8

FAQ

What is your standard configuration for connections?
Fill Dip,Inlet,Fuel Gauge,Outlet: DN25.
E-Vent,Free Vent: DN50.
Can we specify the colour of the tanks and are they painted or powder coated?
Yes, can specify colour, powder coated.
Is there any way to check for fluid between the skins (1st and 2nd layer)?
Oil tank with inspection port.

Can the machine be customized as our need, such as put on our logo?
Surely our machine can be customized as your need, Put on your logo is also available.
May i know which payment will be accepted by your company?
30% to be paid by T/T in advance, balance to be paid by T/T against the final products' pics before shipment.
