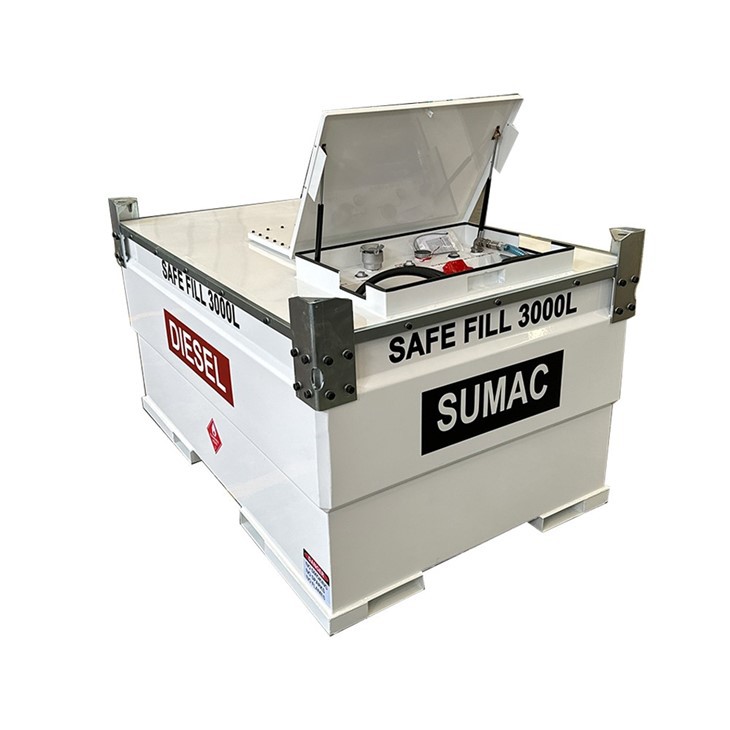

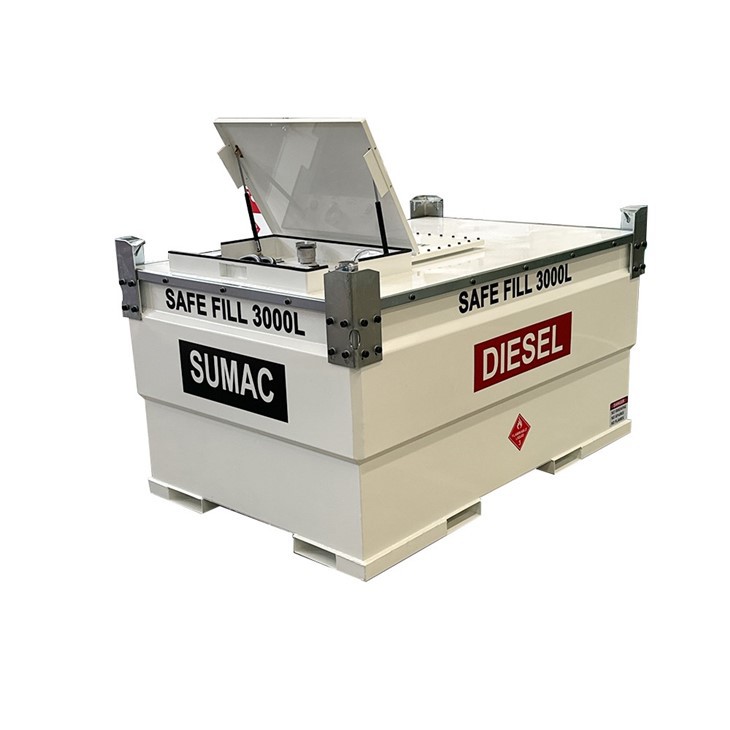

Portable Fuel Gasoline Diesel IBC Transfer Tank For On-Site Refueling
video
Portable Fuel Gasoline Diesel IBC Transfer Tank For On-Site Refueling

Portable Fuel Gasoline Diesel IBC Transfer Tank For On-Site Refueling

SUMAC has designed an efficient, cost-effective storage system that provides a practical and safe solution for businesses to store and manage liquid waste.

Product Introduction

Portable Fuel Gasoline Diesel IBC Transfer Tank For On-Site Refueling

Sumac gasoline cube tanks can provide you greater flexibility and help you save time because they are made to connect to equipment and deliver gasoline simultaneously. Oil tanks can travel with you, wherever you need to go, thanks to its two forklift pockets, which allow for mobility when they are empty.
This totally transportable fuel storage solution from Sumac is ideal if you're working on a site with restricted access. It boosts efficiency.
The most well-liked items in the world are the fuel cube tanks from the NW Series, which come with a fuel dispensing machine and provide an adaptable way to store flammable liquids like coolant, diesel, oil, and gasoline. They also enhance fuel management and dispensing solutions.

1

Technical Parameters

Model

NW-1000

NW-2000

NW-3000

NW-4000

NW-5000

Material

Carbon steel, double wall

Tank type

Storage and dispensing

Size mm

1145x1140x1300 2320x1145x1285 1570x2320x1285

2337x2337x1143

2337x2311x1321

Capacity
(Normal/Safe fill (95%), L)

950/900

2090/1987

2980/2831

3785/3596

4600/4368

Empty Weight (Kg)

About 440

About 824

About 1042

About 1580

About 1690

Test pressure (Kpa)

About 35

Fill Dip, Inlet, Fuel Gauge, Outlet

DN40

E-Vent, Free Vent

DN50

Application

Waste fuel, petrol, waste oil, diesel, coolant, Any liquid,
other than a flammable liquid under normal temperature.

Features

Meet strict quality standards, CE approved.
All seams are welded to exacting standards.
4 x way forklift pockets - Quick and easy maneuvering and mobility.
The tanks come complete with fluid level dipstick, vent pipe and fittings.
Stackable, and with 1pc lockable lids and maintenance hole.
Supplied with all required statutory decals.
Lockable containment area for pump, hose and nozzle storage.
Designed to be stacked for storage and transport while empty or full oil.
Can be lifted via forklift to ensure ease of access and maneuverability, as well as lifting eyes at each corner.
Removable lid - Easy maintenance and cleaning of carbon steel inner tank.

Product Detailes

Details

Tank Connections

6

Packing & Shipping

NW -

Company Profile

Company 8

FAQ

What is your standard configuration for connections?
Fill Dip,Inlet,Fuel Gauge,Outlet: DN25.
E-Vent,Free Vent: DN50.
Can we specify the colour of the tanks and are they painted or powder coated?
Yes, can specify colour, powder coated.
Is there any way to check for fluid between the skins (1st and 2nd layer)?
Oil tank with inspection port.

Is there a suction tube on the outlet port for evac of the waste oil?

Yes.

For the secondary sealing capacity, whether to increase the capacity of 10% on the basis of the inner tank capacity?

Yes.
