Portable Fuel Mobile Gasoline Diesel Oil Ibc Tank With Pump
video
Portable Fuel Mobile Gasoline Diesel Oil Ibc Tank With Pump

Portable Fuel Mobile Gasoline Diesel Oil Ibc Tank With Pump

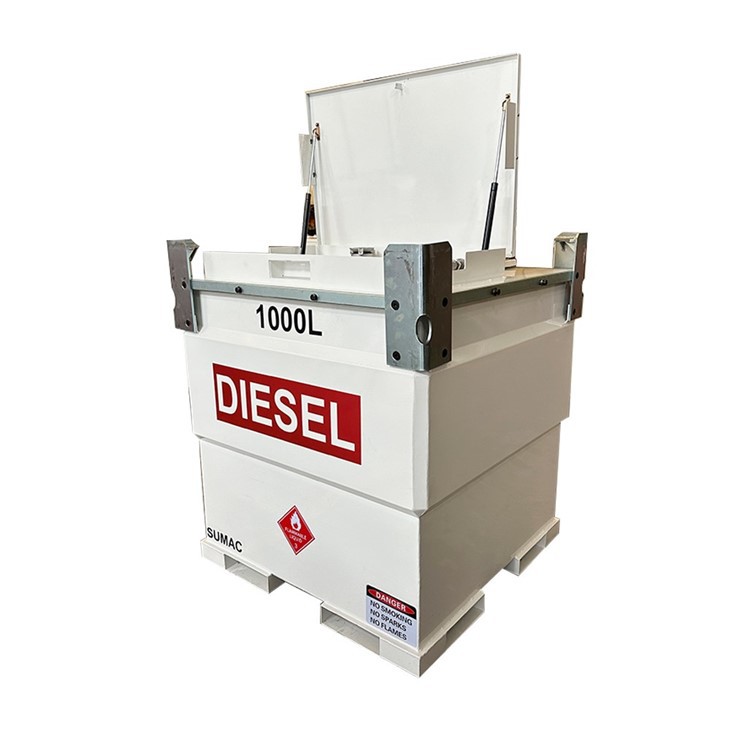

The NW Series fuel IBC tank with fuel pump offers an adaptable method of storing flammable liquids (such as gasoline, diesel, oil, coolant, etc.) and improving fuel management and dispensing. If you're looking for an IBC tank that carries gasoline or diesel fuel and is sold directly by the manufacturer, look for Sumac.

Introduction

Portable fuel mobile gasoline diesel oil ibc tank with pump

An adjustable way to store flammable liquids (such gasoline, diesel, oil, coolant, etc.) and enhance fuel management and dispensing is provided by the NW Series fuel IBC tank with fuel pump. Look for Sumac if you're looking for an IBC tank that is offered straight from the manufacturer that holds either gasoline or diesel fuel.
gasoline cube tanks are made to disperse gasoline and connect to equipment at the same time, providing you greater flexibility and time savings. Oil tanks are movable and can go with you wherever you are and whenever you need them thanks to their four forklift compartments.

NW tank

Technical Parameters

Model

NW-1000

NW-2000

NW-3000

NW-4000

NW-5000

Material

Carbon steel, double wall

Tank type

Storage and dispensing

Dimension

1145x1140x1300mm 2320x1145x1285mm 1570x2320x1285mm

2337x2337x1143mm

2337x2311x1321mm

Capacity
(Normal/Safe fill (95%))

950/900 L

2090/1987 L

2980/2831 L

3785/3596 L

4600/4368 L

Empty Weight

About 440Kg

About 824Kg

About 1042Kg

About 1580Kg

About 1690Kg

Test pressure

About 35Kpa

Fill Dip, Inlet, Fuel Gauge, Outlet

DN40

E-Vent, Free Vent

DN50

Features
4 x way forklift pockets - Quick and easy maneuvering and mobility.
The tanks can come complete with fluid level dipstick, vent pipe and fittings.
Stackable, and with 1pc lockable lid.
Supplied with all required statutory decals. Put on your logo is also available.

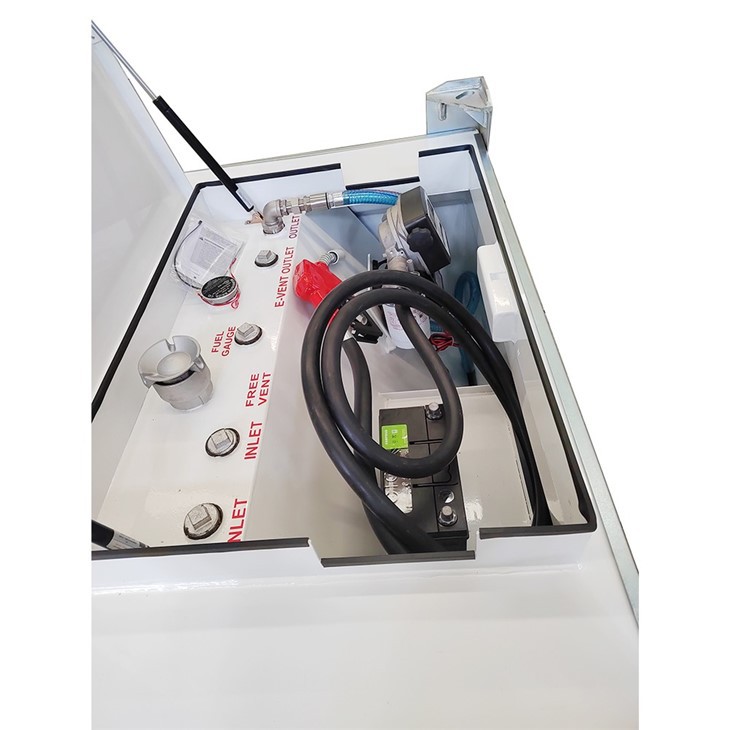

Lockable containment area for pump, hose and nozzle storage.
Designed to be stacked for storage and transport when full and empty oil.
Can be lifted via forklift to ensure ease of access and maneuverability, as well as lifting ears at each corner.

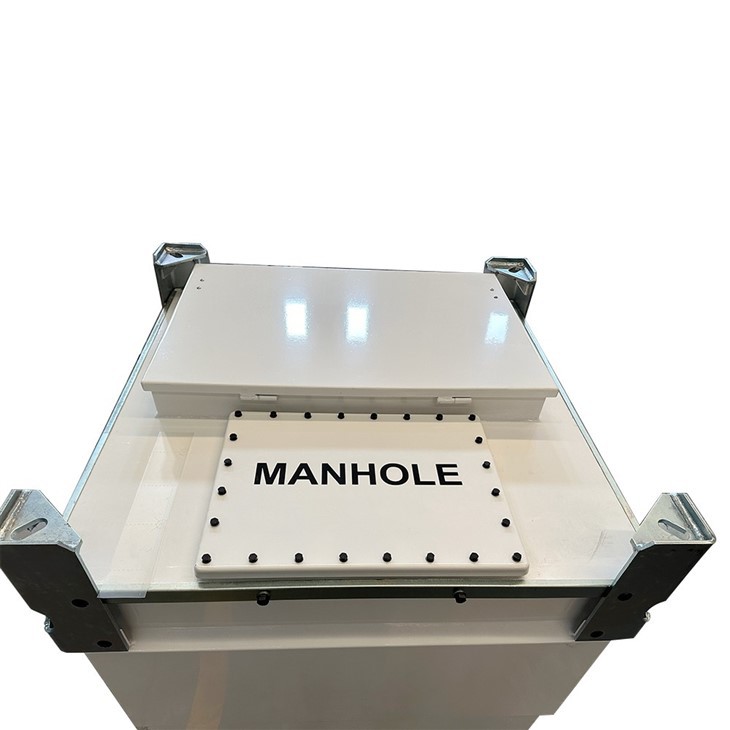

With manhole - Easy maintenance and cleaning of carbon steel inner tank.

Tank Connections

5

Optional Fittings

Option

Application

  • Agriculture: Tractors, combines, and irrigation pumps are examples of farming equipment that use diesel fuel tanks to power gear for planting, harvesting, and irrigation.
  • Construction and mining: Big gasoline tanks are required for the extended operation of heavy equipment, like bulldozers, excavators, and dump trucks, in remote or challenging areas. Diesel fuel is typically used by these equipment.
  • Industrial Machinery: Diesel-powered equipment is employed for a range of tasks in factories, warehouses, and manufacturing facilities, among other industrial settings. Diesel fuel tanks are necessary for these processes to continue manufacturing continuously.

Application

About Us

Company 8

FAQ
Q: Can we specify the colour of the tanks and are they painted or powder coated?
A: Yes, can specify colour, and the tanks are powder coated.

Q: Is there a suction tube on the outlet port for evac of the waste oil?

A: Yes.

Q: For the secondary sealing capacity, whether to increase the capacity of 10% on the basis of the inner tank capacity.

A: Yes.

Q: Can i do your agent in our country or some district?
A: Yes, if you quantity is enough, no problem, the 40HQ container is okay.
