Introduction

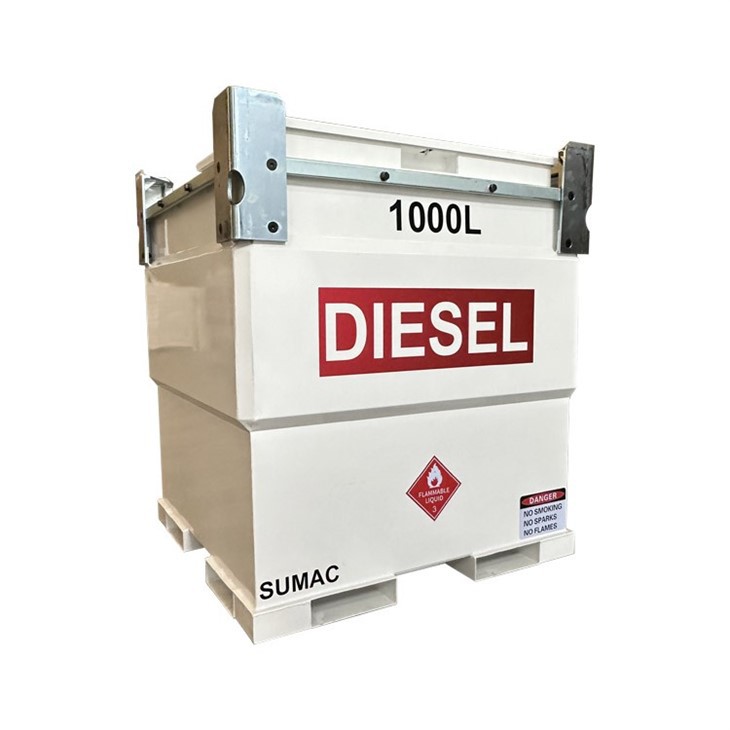

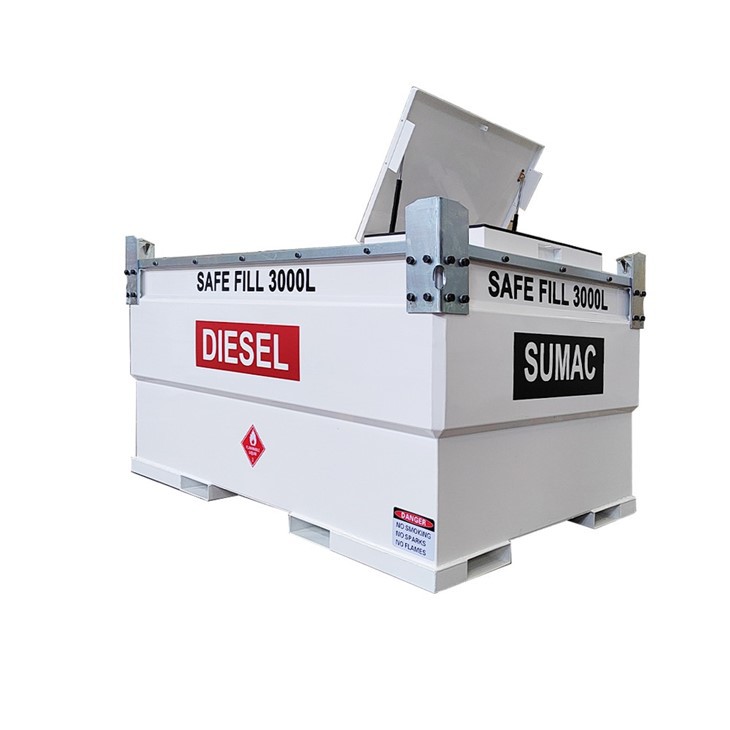

Portable Transporting Mobile Station Gasoline Diesel Tank with Pump For Truck Refueling
NW Series fuel IBC tank with fuel pump offers a flexible solution to store combustible liquid (diesel, gasoline, oil, coolant, etc.) and improve fuel dispensing and management solutions. If you're looking for a petrol diesel fuel IBC tank sold directly by the manufacturer, look for Sumac.
Sumac Fuel tanks can provide you greater flexibility and help you save important time because they are made to connect to equipment and deliver fuel simultaneously. Oil tanks are mobile and can go with you, wherever you are and whenever you need them, thanks to their four forklift pockets.
Use Long cycle time, direct sales at factory prices, and Sumac technical team provides you with professional after-sales service! Contact us anytime if you need anything!
Technical Parameters
| Model | NW-1000 | NW-2000 | NW-3000 | NW-4000 | NW-5000 |
| Material | Carbon steel, double wall | ||||
| Tank type | Storage and dispensing | ||||
| Dimension | 1145x1140x1300mm | 2320x1145x1285mm | 1570x2320x1285mm | 2337x2337x1143mm | 2337x2311x1321mm |
| Capacity (Normal/Safe fill (95%)) | 950/900 L | 2090/1987 L | 2980/2831 L | 3785/3596 L | 4600/4368 L |
| Empty Weight | About 440Kg | About 824Kg | About 1042Kg | About 1580Kg | About 1690Kg |
| Test pressure | About 35Kpa | ||||
| Fill Dip, Inlet, Fuel Gauge, Outlet | DN40 | ||||
| E-Vent, Free Vent | DN50 | ||||
Features
All seams are welded to exacting standards.
4 x way forklift pockets - Quick and easy maneuvering and mobility.
The tanks can come complete with fluid level dipstick, vent pipe and fittings.
Stackable, and with lockable lid and manhole.
Supplied with all required statutory decals. Put on your logo is also available.

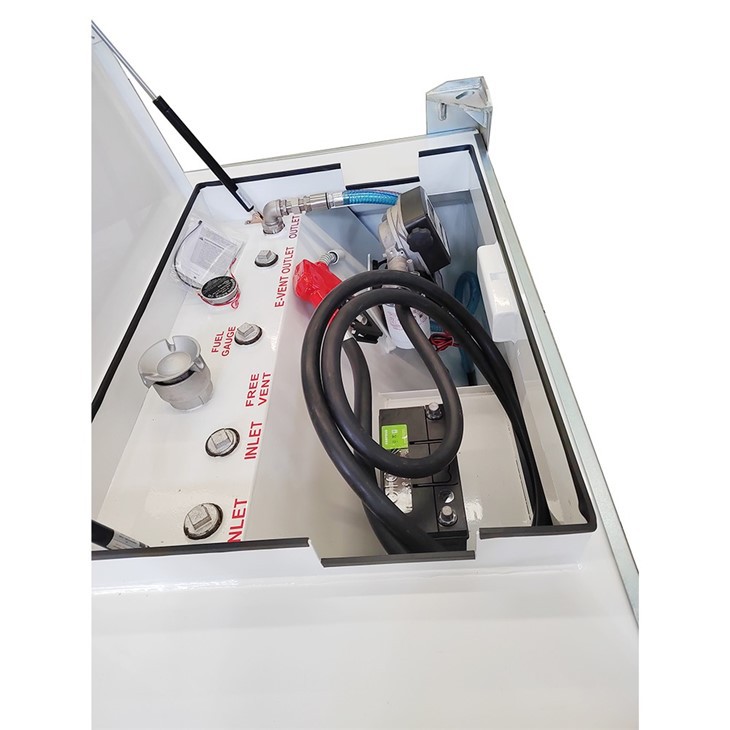

Lockable containment area for pump, hose and nozzle storage.
Designed to be stacked for storage and transport empty.
Can be lifted via forklift to ensure ease of access and maneuverability, as well as lifting ears at each corner.
Removable manhole - Easy maintenance and cleaning of carbon steel inner tank.
Tank Connections
Optional Fittings
Application
About Us
FAQ
Q: Are your oil tanks rust-proof?
A: Yes, our paint is electrostatic spraying of polyester powder, we called powder coating paint, oil resistance, antirust treatment.
Q: Is the fuel tank easy for land transport?
A: Yes.
Q: Does the fuel tank has lockable cabinets for pump?
A: Yes.
Q: Can it come with fuel pump?
A: Yes, we can equip with different kinds of fuel pump according to customer needs.
Q: Does the tank come with forklift pockets?
A: Yes. 4 Way forklift pockets.
Q: Is it with lifting lugs?
A: Yes. Galvanized Lift Full Crane Lugs on Each Corner.
Q: Is the tank easy to shipment?
A: Yes, the height of our fuel tank is designed according to the size of the container and can be stacked.
Q: Can the tank be customized?
A: Yes, Sumac has a professional design and engineering team that can customize the tank according to customers requirements.
