Introduction

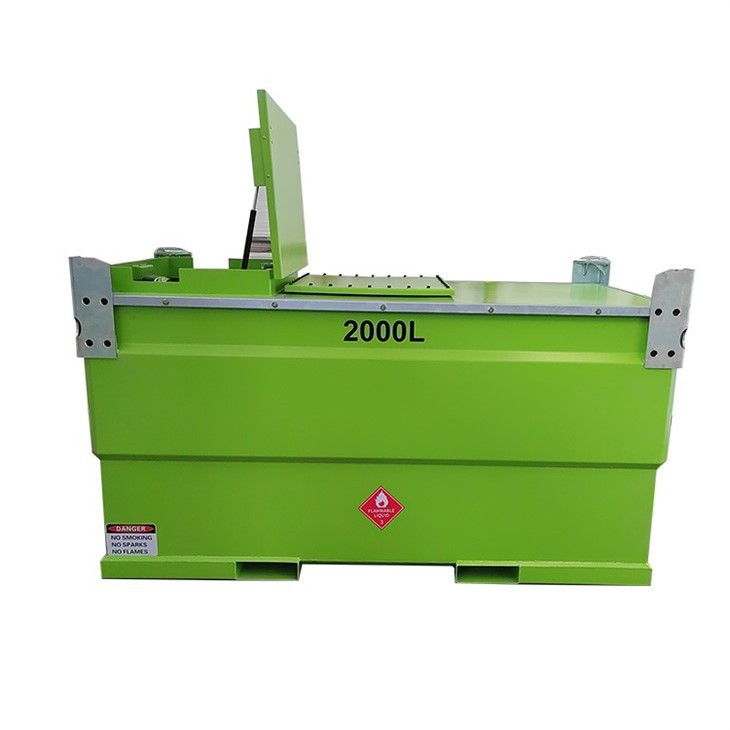

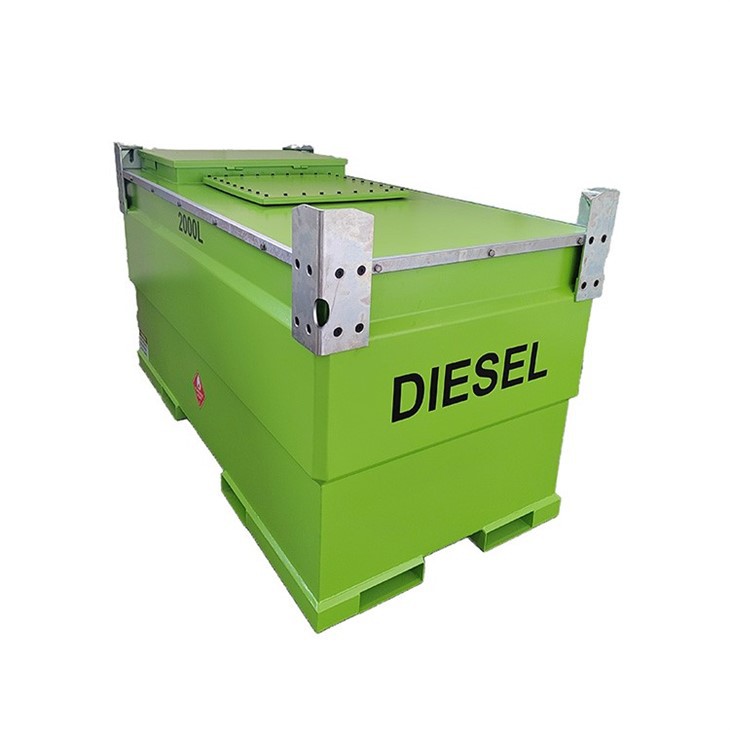

Self bunded cube above ground cube fuel diesel ibc tank with pump
The NW Series fuel IBC tank with fuel pump offers an adaptable method of storing flammable liquids (such as gasoline, diesel, oil, coolant, etc.) and improving fuel management and dispensing. If you're looking for an IBC tank that carries gasoline or diesel fuel and is sold directly by the manufacturer, look for Sumac.
Fuel cube tanks are designed to connect to equipment and distribute fuel at the same time, giving you more flexibility and saving valuable time. With their four forklift pockets, oil tanks are portable and can travel with you, wherever you are, whenever you need them.
Technical Parameters
| Model | NW-1000 | NW-2000 | NW-3000 | NW-4000 | NW-5000 |
| Material | Carbon steel, double wall | ||||
| Tank type | Storage and dispensing | ||||
| Dimension | 1145x1140x1300mm | 2320x1145x1285mm | 1570x2320x1285mm | 2337x2337x1143mm | 2337x2311x1321mm |
| Capacity (Normal/Safe fill (95%)) | 950/900 L | 2090/1987 L | 2980/2831 L | 3785/3596 L | 4600/4368 L |
| Empty Weight | About 440Kg | About 824Kg | About 1042Kg | About 1580Kg | About 1690Kg |
| Test pressure | About 35Kpa | ||||
| Fill Dip, Inlet, Fuel Gauge, Outlet | DN40 | ||||
| E-Vent, Free Vent | DN50 | ||||
Features
All seams are welded to exacting standards.
4 x way forklift pockets - Quick and easy maneuvering and mobility.
The tanks can come complete with fluid level dipstick, vent pipe and fittings.
Stackable, and with 1pc lockable lid.
Supplied with all required statutory decals. Put on your logo is also available.
Lockable containment area for pump, hose and nozzle storage.
Designed to be stacked for storage and transport when full and empty oil.
Can be lifted via forklift to ensure ease of access and maneuverability, as well as lifting ears at each corner.
With manhole - Easy maintenance and cleaning of carbon steel inner tank.
Tank Connections
Optional Fittings
Application
Agriculture: To power machinery for planting, harvesting, and irrigation, diesel fuel tanks are utilized in farming equipment like tractors, combines, and irrigation pumps.
Construction and Mining: Large fuel tanks are necessary for the prolonged operation of heavy machinery in distant or difficult environments, such as bulldozers, excavators, and dump trucks. These machines normally run on diesel fuel.
Industrial Machinery: Diesel-powered machinery is used in many industrial applications, including factories, warehouses, and manufacturing plants, for a variety of operations. In order to maintain continuous manufacturing, diesel fuel tanks are essential to these processes.
About Us
FAQ
Q: Can we specify the colour of the tanks and are they painted or powder coated?
A: Yes, can specify colour, and the tanks are powder coated.
Q: Is there a suction tube on the outlet port for evac of the waste oil?
A: Yes.
Q: For the secondary sealing capacity, whether to increase the capacity of 10% on the basis of the inner tank capacity.
A: Yes.
Q: Can i do your agent in our country or some district?
A: Yes, if you quantity is enough, no problem, the 40HQ container is okay.
Q: Can the machine be customized as our need, such as put on our logo?
A: Surely our machine can be customized as your need, put on your logo is also available.
