Skid Mounted Self Bunded Carbon Steel Double Wall Petrol Fuel Diesel IBC Cube Tank
video
Skid Mounted Self Bunded Carbon Steel Double Wall Petrol Fuel Diesel IBC Cube Tank

Skid Mounted Self Bunded Carbon Steel Double Wall Petrol Fuel Diesel IBC Cube Tank

SUMAC has designed an efficient, cost-effective storage system that provides a practical and safe solution for businesses to store and manage liquid waste.

Introduction

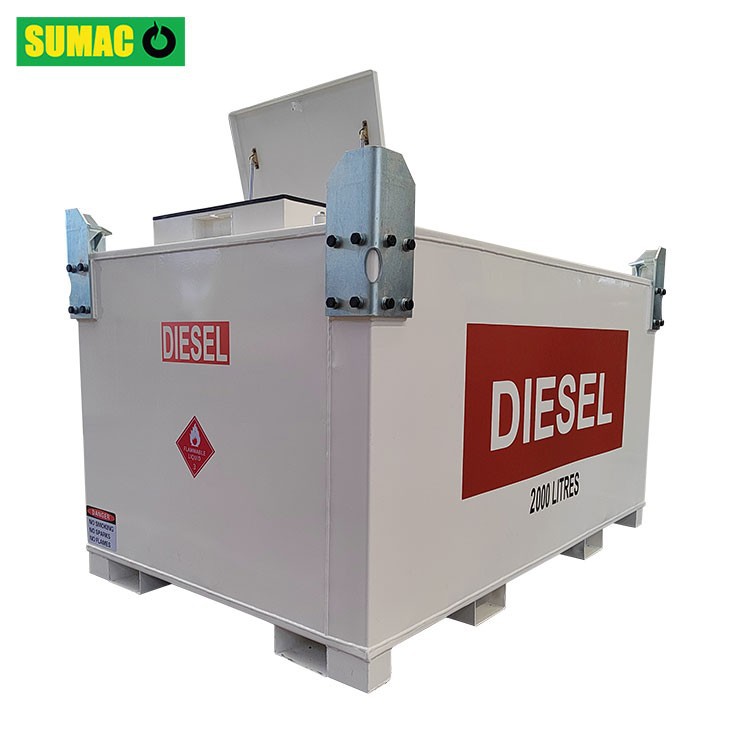

Skid mounted self bunded carbon steel double wall petrol fuel diesel IBC cube tank

A fuel tank can hold and dispense any liquid, including coolant, waste oil, gasoline, diesel, and waste oil, that isn't combustible at room temperature.

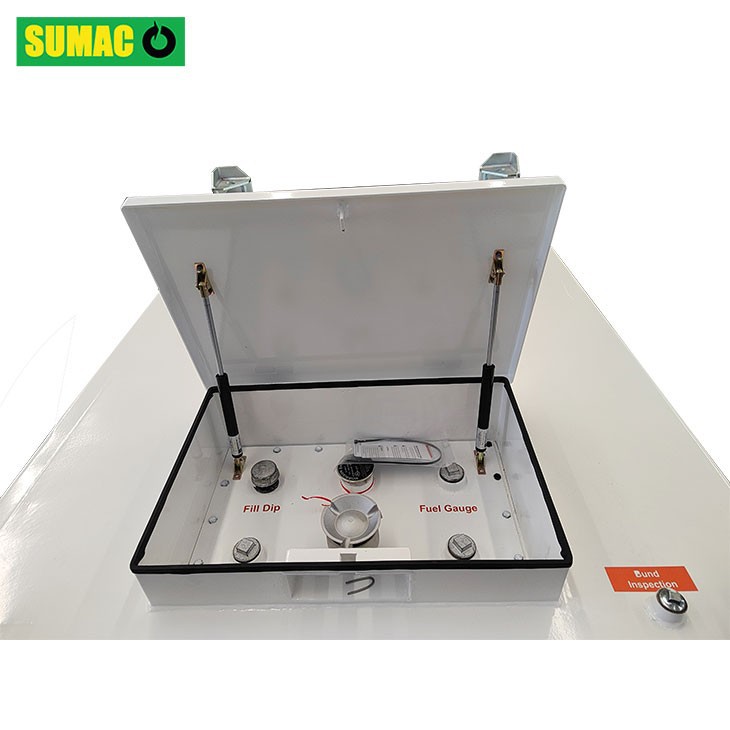

There is minimal chance of leakage into the surroundings because all connections are made through the top and self-bunded as a result of the double wall design.
To avoid any form of dirt buildup, diesel storage tanks have a unique outlet layout that draws from the inner wall.
The self-bunded oil tank meets industry standards for paint finish and fabrication quality and is fully developed and manufactured by SUMAC.
Rectangular tanks maximize storage capacity while maintaining full under-self bunded tank visibility for long-term tank fuel oil storage applications.

Details

Technical Parameters

Model

NW-1000

NW-2000

NW-3000

NW-4000

NW-5000

Material

Carbon steel, double wall

Tank type

Storage and dispensing

Dimension

1145x1140x1300mm 2320x1145x1285mm 1570x2320x1285mm

2337x2337x1143mm

2337x2311x1321mm

Capacity
(Normal/Safe fill (95%))

950/900 L

2090/1987 L

2980/2831 L

3785/3596 L

4600/4368 L

Empty Weight

About 440Kg

About 824Kg

About 1042Kg

About 1580Kg

About 1690Kg

Test pressure

About 35Kpa

Fill Dip, Inlet, Fuel Gauge, Outlet

DN40

E-Vent, Free Vent

DN50

Application

Waste fuel, petrol, waste oil, diesel, coolant, Any liquid,
other than a flammable liquid under normal temperature.

Features
All seams are welded to exacting standards.
4 x way forklift pockets - Quick and easy maneuvering and mobility.
The tanks can come complete with fluid level dipstick, vent pipe and fittings.
Stackable, and with lockable lid and manhole.
Supplied with all required statutory decals. Put on your logo is also available.
Lockable containment area for pump, hose and nozzle storage.
Designed to be stacked for storage and transport empty.
Can be lifted via forklift to ensure ease of access and maneuverability, as well as lifting ears at each corner.
Removable manhole - Easy maintenance and cleaning of carbon steel inner tank.

Details

Detail

Packing & Shipping

Packing Shipping -

About Us

Company 8

FAQ

Q: What is your standard configuration for connections?
A: Fill Dip,Inlet,Fuel Gauge,Outlet: DN40.
    E-Vent,Free Vent: DN50.
Q: Can we specify the colour of the tanks and are they painted or powder coated?
A: Yes, can specify colour, and the tanks are powder coated.
Q: Is there any way to check for fluid between the skins (1st and 2nd layer)?
A: Oil tank with inspection port.

Q: Is there a suction tube on the outlet port for evac of the waste oil?

A: Yes.

Q: For the secondary sealing capacity, whether to increase the capacity of 10% on the basis of the inner tank capacity.

A: Yes.

Q: Can i do your agent in our country or some district?
A: Yes, if you quantity is enough, no problem, the 40HQ container is okay.
