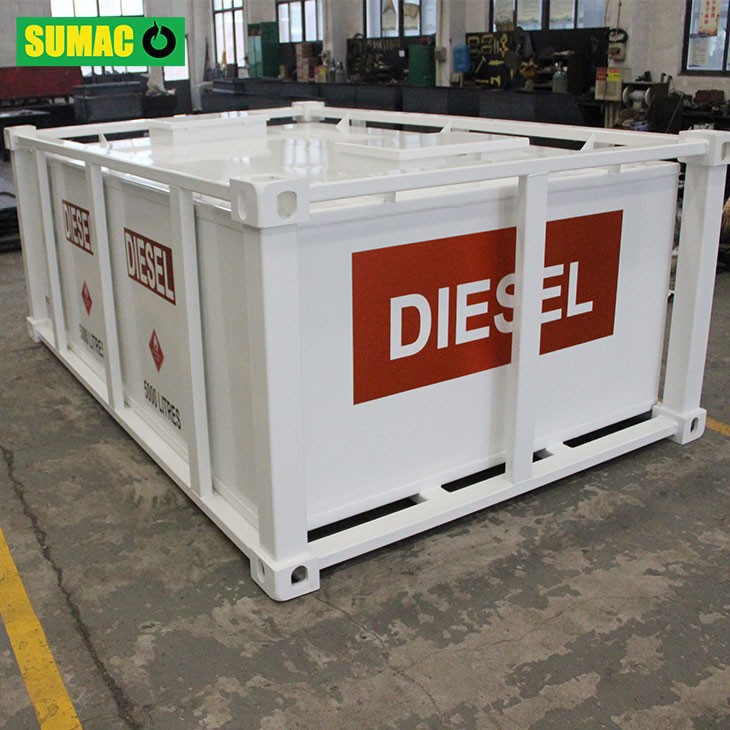

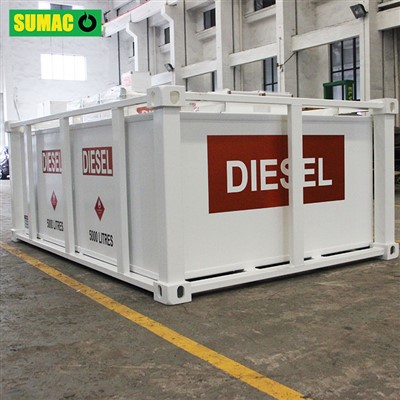

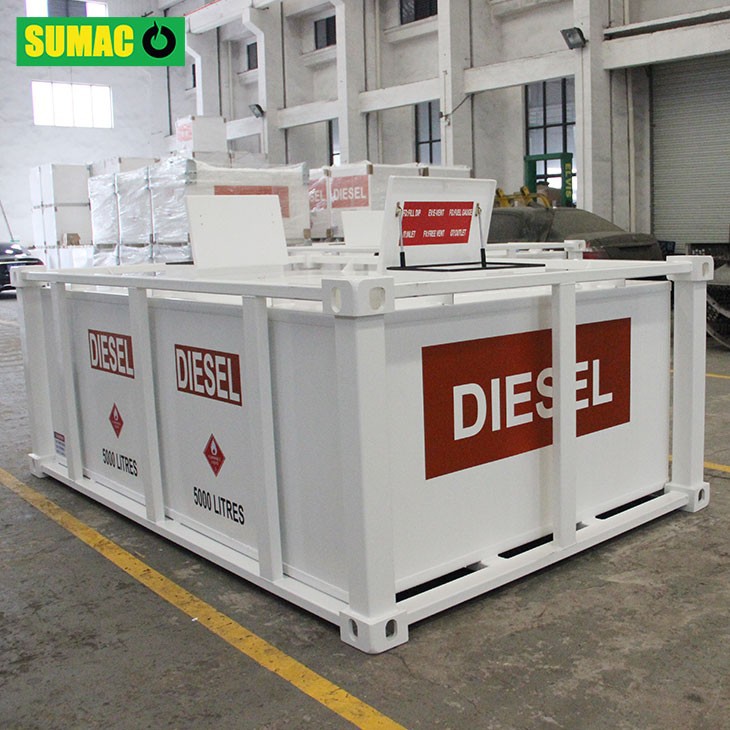

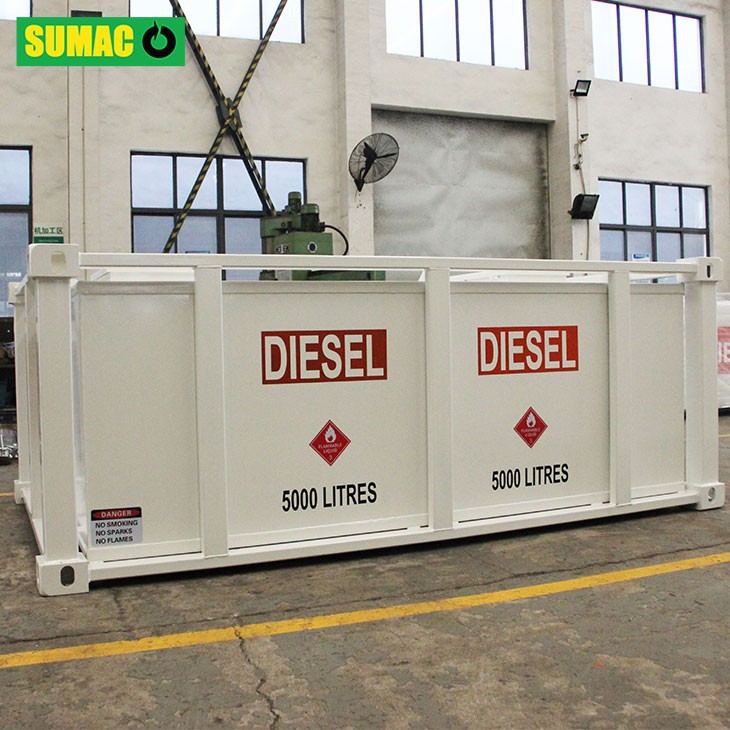

Stackable oil fuel tanks diesel fuel storage tank
All connections are through the top and the double wall design makes them self bunded, eliminating the chance of leakage into the environment.
Fuel tanks have a unique outlet arrangement that draws from the floor of the inner preventing build up of any type of sediment.
The cube self bunded tank, which is entirely designed and produced by SUMAC, satisfies industry standards for paint finish and fabrication quality.
The fuel tanks will be plastic film and bubble wrap wrapped, to make sure it can be delivered to our customer smoothly, and we will use the steel wire to fix the oil tank with the container.
Specification
| Model | ARST-5000 |
| Material | Carbon steel |
| Tank type | Storage and dispensing |
| Size | 3395x2200x1270mm |
| Volume | 5000 litres |
| Empty Weight | About 2400Kg |
| Test pressure | About 35Kpa |
| Feed/Discharging | DN40 |
| Application | Waste fuel, petrol, waste oil, diesel, coolant, Any liquid, |
Features
Meet strict quality standards, CE approved.
The capacity of the tank is 5000 liters. All seams are welded to exacting standards.
The tanks come complete with fluid level dipstick, vent pipe and fittings.
Stackable, and with 2pcs lockable lids and maintenance hole.
Supplied with all required statutory decals.
Designed to be stacked for storage and transport empty.
Can be lifted via forklift to ensure ease of access and maneuverability, as well as lifting eyes at each corner.
Removable lid - Easy maintenance and cleaning of carbon steel inner tank.
Product Details
Related Fittings
Similar Product
Our Customers
Company Profile
FAQ

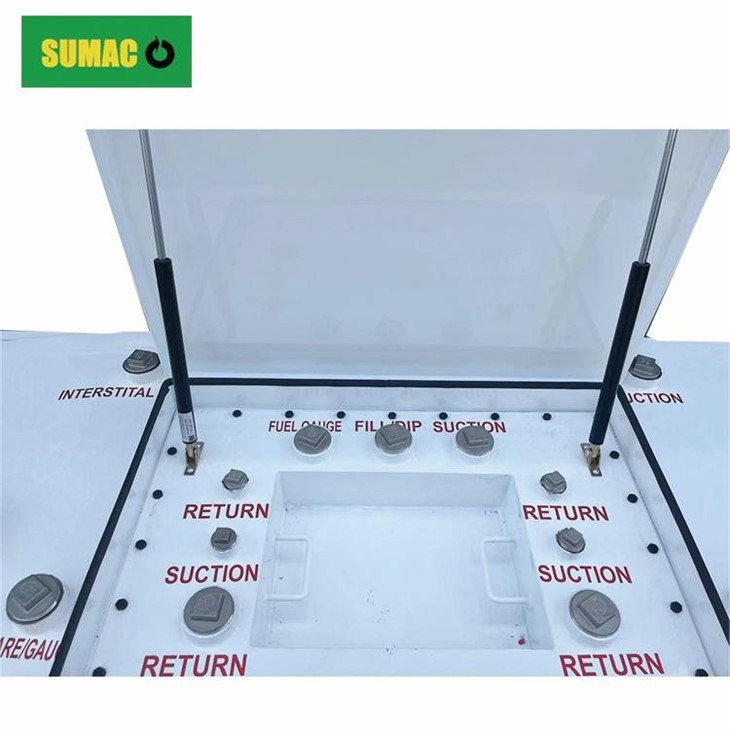

What is your standard configuration for connections?
Fill Dip, Inlet, Fuel Gauge, Outlet: DN40
E-Vent,FreVent: DN50
Can we specify the colour of the tanks and are they painted or powder coated?
Yes, can specify colour,powder coated.
Is there any way to check for fluid between the skins (1st and 2nd layer)?
Oil tank with inspection port.
Can you confirm if the tanks are supplied with, dip stick & the vent?
Yes.
Is there a suction tube on the outlet port for evac of the waste oil?
Yes.
