Introduction

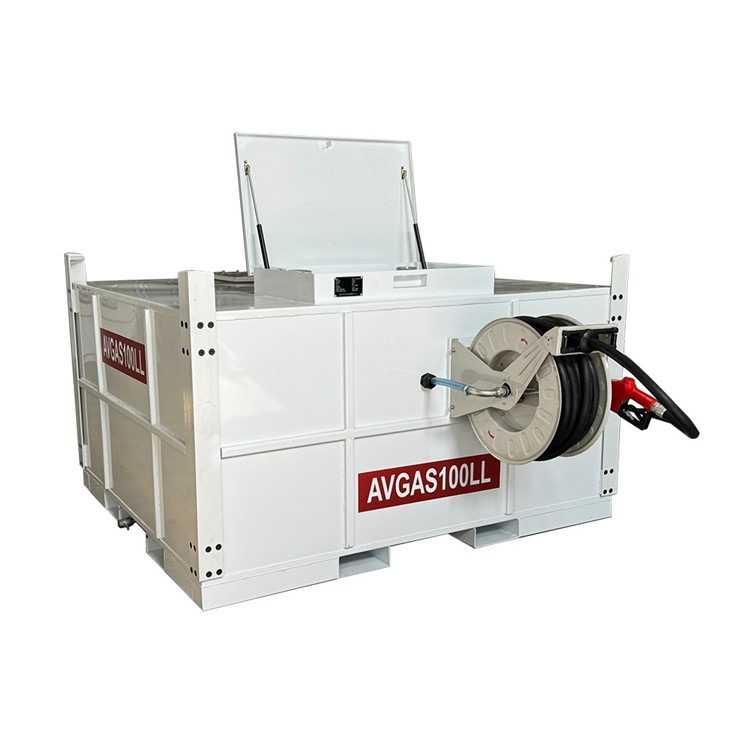

SUMAC PL Series "Cube Tank" are a solution for the storage and dispensing of diesel, gasoline and lubricant oils from 1000L to 10000L.
PL Series tank offers a flexible solution to storing combustible liquid (Diesel, gasoline, oil, coolant, etc. ) , as well as improving fuel dispensing and management solutions, A practical stationary design ensures a fast, easy and convenient installation in any location, indoors or outdoors.
With its fully transportable design and ability to fuel multiple pieces of equipment simultaneously. A place, fill-and-pump installation process offering versatility and speed on commissioning,

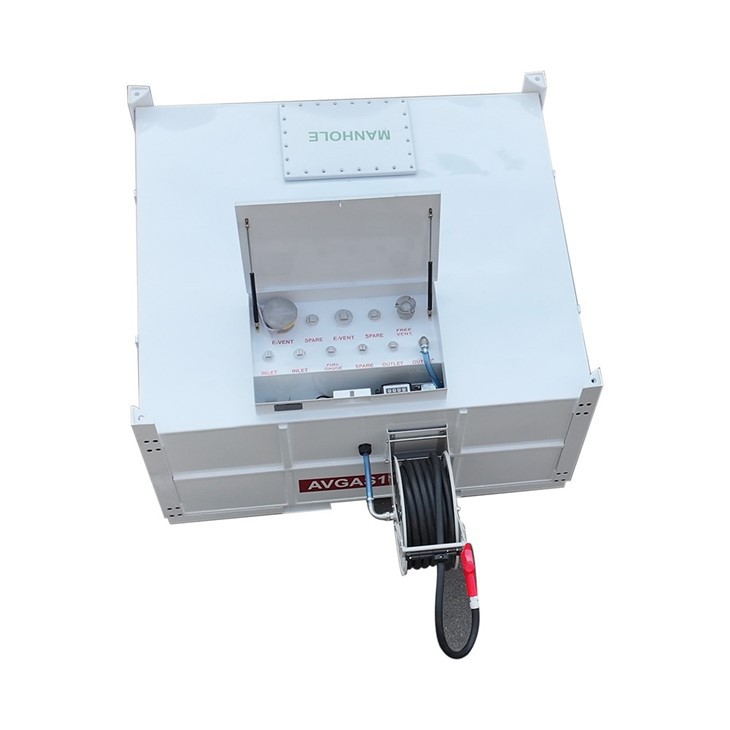

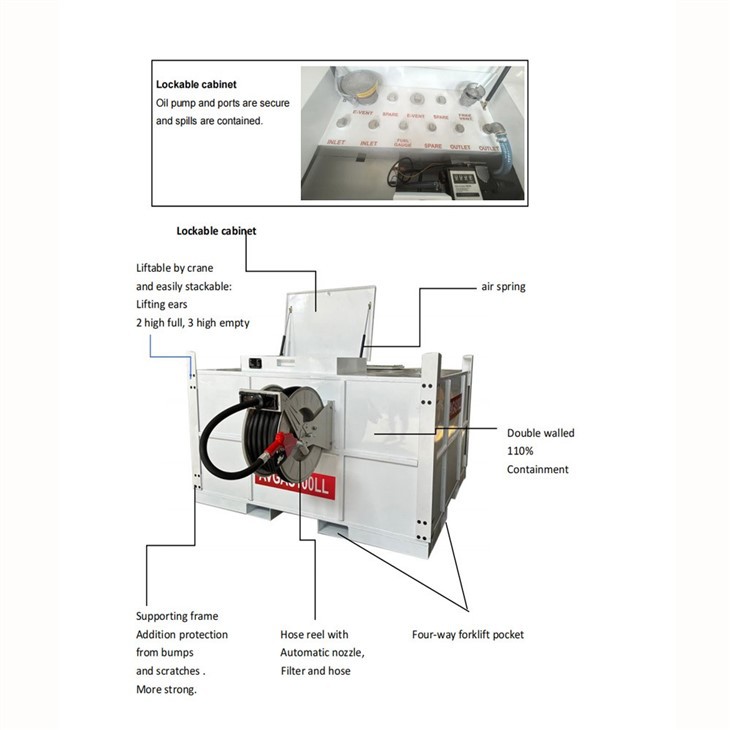

Fitted with an anti-vandal lockable door, complete with internal hinges and gas-strut opening, the Fuel Cube's all-steel construction provides unrivalled strength and security. Generator flow and return pipes are fitted as standard, and complemented by a wide choice of dispensing options to match your needs exactly.
The freestanding "cube style" design allows for 360° tank viewing and inspection. High-grade powder coating paint finish ensures longer durability the elements.
Durable stationary design with double-wall containment for added safety and security.
Technical Parameters
| Model | PL-3500 | PL-5000 |
| Material | Carbon steel | |
| Tank type | Double-walled cube tank | |
| Capacity (Normal/Safe fill (95%)) | 3500/3325 L | 5000/4760 L |
| Dimension (LxWxH) | 2180x1930x1300mm | 2715x2211x1300mm |
| Empty Weight | 1100Kg | 1720Kg |
| Test pressure | 35Kpa | |
| Inlet, Outlet | DN40/DN50 | |
| E-Vent, Free Vent | 2", 3", 4" | |
| Application | Aviation jet, fuel, petrol, oil, diesel, def, coolant, Any liquid, other than a flammable liquid under normal temperature. | |
Tank Connections
The role of the Fuel Cube Transfer Station
-
On-site fuel supply: On-site fuel supply can be provided for construction machinery, agricultural equipment, etc. at construction sites, mines, farms and other places, so that the equipment does not need to wait for the arrival of fuel transport vehicles, reducing downtime and improving work efficiency.
-
Fleet refueling: Whether in remote areas or at the location of the facility, the Fuel Cube Transfer Station can refuel the fleet quickly and efficiently, and can be customized according to the needs of the fleet to improve the convenience and efficiency of refueling.
-
Backup fuel storage: As a backup fuel storage point, it provides fuel support for key equipment and facilities in emergencies or when the fuel supply is interrupted, such as backup generator fuel supply in hospitals, data centers, communication base stations and other places.
Application
- Construction industry: On construction sites, it is used to provide fuel for various construction equipment such as cranes, excavators, loaders, etc. to ensure the continuity of construction.
- Transportation industry: It can be set up in logistics centers, bus stations, long-distance bus stations and other places to refuel trucks, buses, long-distance coaches and other vehicles.
- Agricultural field: It is used in farms to store and supply fuel for agricultural machinery such as tractors and harvesters to meet the seasonal and high-intensity operation needs of agricultural production.
- Emergency rescue field: In natural disasters or emergency situations, such as earthquakes, floods, fires, etc., it serves as a temporary fuel supply point to provide fuel support for rescue vehicles, equipment and generators.
About Sumac
FAQ
Q. What is your standard configuration for connections
A. Fill Dip,Inlet,Fuel Gauge,Outlet: DN25, or customized.
Q. Can we specify the colour of the tanks and are they painted or powder coating paint?
A. Yes, can specify colour, powder coating paint.
Q. Is there any way to check for fluid between the skins (1st and 2nd layer)?
A. Oil tank with inspection port.
Q. Can you confirm if the tanks are supplied with, dip stick & the vent?
A. Yes.
Q. Is there a suction tube on the outlet port for evac of the waste oil?
A. Yes.
Q. For the secondary sealing capacity, whether to increase the capacity of 10% on the basis of the inner tank capacity?
A. Yes.
