Introduction
Sumac SUAE series cube self bunded tanks come in various sizes. Starting from the smallest 950 litres (Gross Fill) going up as high as 7200 litres (Gross Fill). We have a Fuel Tank suitable for all your fuel storage requirements. Sumac's new fuel cube tanks come with lockable containments to keep your parts and connections secure and out of the elements. Tanks also come equipped with convenient lifting points to simplify crane handling and positioning your tank.
With its fully transportable design and ability to fuel multiple pieces of equipment simultaneously. A place, fill-and-pump installation process offering versatility and speed on commissioning, The freestanding "cube style" design allows for 360° tank viewing and inspection. High-grade powder coating paint finish ensures longer durability the elements. Durable stationary design with double-wall containment for added safety and security.
Technical Parameters
| Model | SUAE-1000 | SUAE-2000 | SUAE-3000 | SUAE-4500 | SUAE-7000 |
| Capacity (Normal/Safe fill (95%)) | 950/905 L | 2063/1960 L | 2850/2710 L | 4460/4240 L | 7200/6840 L |
| Dimension (LxWxH) | 1145x1145x1275mm | 2245x1145x1275mm | 2245x1520x1275mm | 2245x2312x1275mm | 3945x2210x1195mm |
| Empty Weight | About 450Kg | About 750Kg | About 868Kg | About 1155Kg | About 2280Kg |
| Material | Carbon steel | ||||
| Tank type | Storage and dispensing | ||||
| Testing pressure | About 35Kpa | ||||
| Fill Dip / Fuel Gauge, Inlet, Outlet | DN40/DN50/80/DN100 | ||||
| E-Vent, Free Vent | DN50/DN80/DN100 | ||||
| Logo/Packing | If you need to customize the Logo, please send an inquiry | ||||
| Application | Fuel, petrol,boil, diesel, coolant, Any liquid, other than a flammable liquid under normal temperature. | ||||
Tank Connections

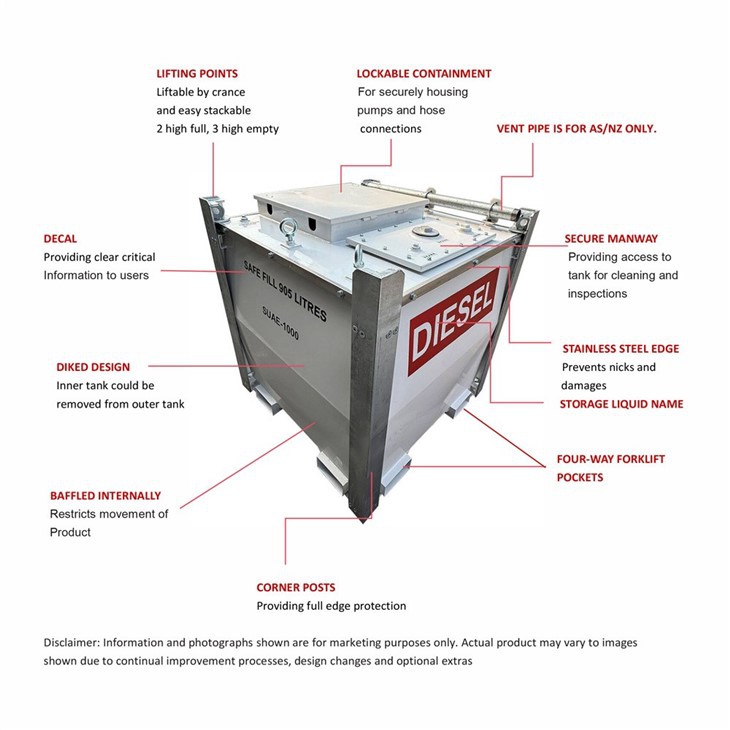

Features

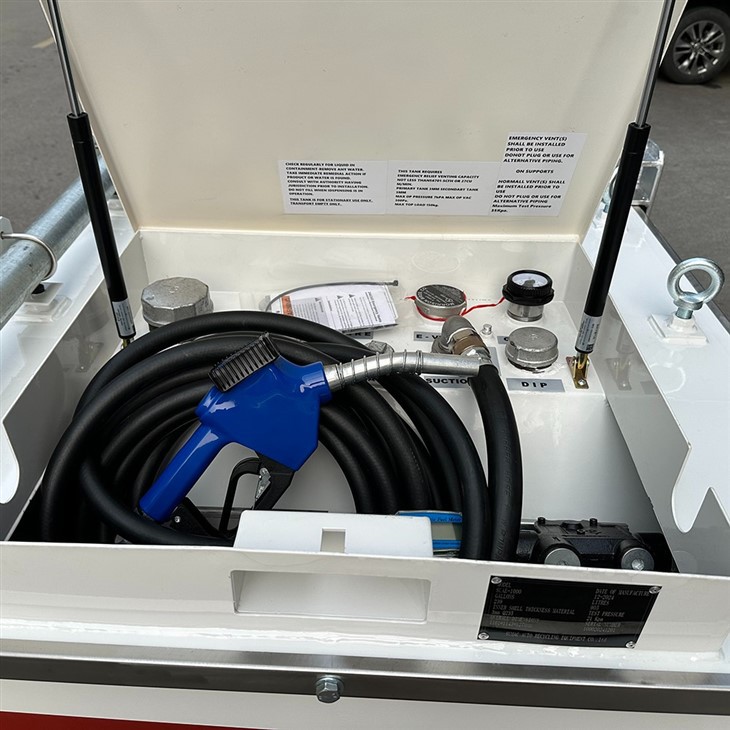

- Lockable Containment – For securely housing pumps and hoses.
- Lifting Points – Simplify crane handling.
- Secure Manhole – Provides access to tank for easy cleaning and inspections.
- Stainless Steel Frames – Prevent damage during transport and once installed on-site.
- Internal baffles – Restrict movement of oil when transport.
- Decals – Provide clear critical information for operators or users.
- Removable Design – Allows the inner tank to be removed from the outer tank.
- Corner Posts – Provide full edge protection.
- Forklift Pockets – Double sided, allowing access from all 4 sides.
Why Choose Us
FAQ
Q. What is your standard configuration for connections
A. Fill Dip,Inlet,Fuel Gauge,Outlet: DN25, or customized.
Q. Can we specify the colour of the tanks and are they painted or powder coating paint?
A. Yes, can specify colour, powder coating paint.
Q. Is there any way to check for fluid between the skins (1st and 2nd layer)?
A. Oil tank with inspection port.
Q. Can you confirm if the tanks are supplied with, dip stick & the vent?
A. Yes.
Q. Is there a suction tube on the outlet port for evac of the waste oil?
A. Yes.
Q. For the secondary sealing capacity, whether to increase the capacity of 10% on the basis of the inner tank capacity?
A. Yes.
