Introduction

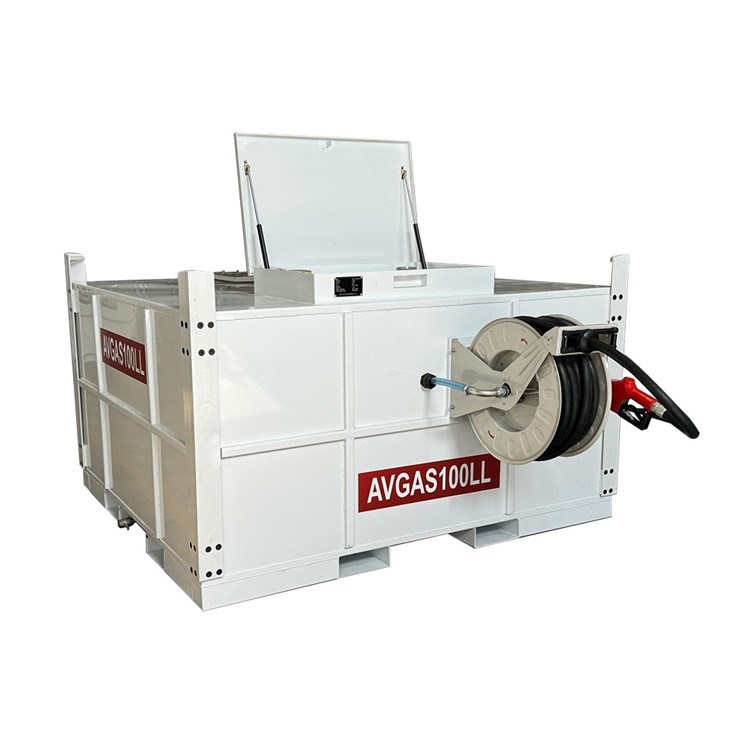

SUMAC PL Series "Cube Tank" are a solution for the storage and dispensing of diesel, gasoline and lubricant oils from 1000L to 10000L.
PL Series tank offers a flexible solution to storing combustible liquid (Diesel, gasoline, oil, coolant, etc. ) , as well as improving fuel dispensing and management solutions, A practical stationary design ensures a fast, easy and convenient installation in any location, indoors or outdoors.
With its fully transportable design and ability to fuel multiple pieces of equipment simultaneously. A place, fill-and-pump installation process offering versatility and speed on commissioning,

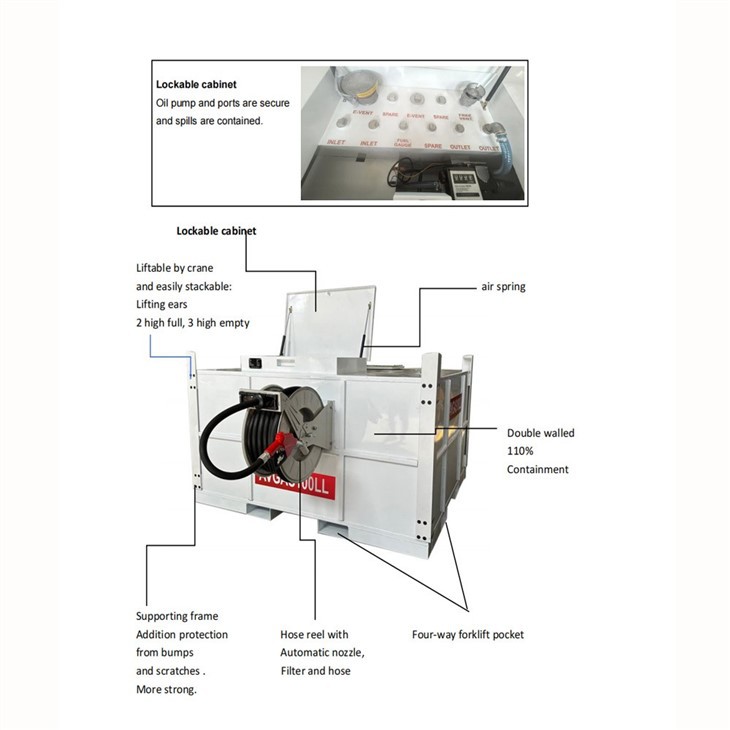

Fitted with an anti-vandal lockable door, complete with internal hinges and gas-strut opening, the Fuel Cube's all-steel construction provides unrivalled strength and security. Generator flow and return pipes are fitted as standard, and complemented by a wide choice of dispensing options to match your needs exactly.
The freestanding "cube style" design allows for 360° tank viewing and inspection. High-grade powder coating paint finish ensures longer durability the elements.
Durable stationary design with double-wall containment for added safety and security.
Technical Parameters
| Model | PL-3500 | PL-5000 |
| Material | Carbon steel | |
| Tank type | Double-walled cube tank | |
| Capacity (Normal/Safe fill (95%)) | 3500/3325 L | 5000/4760 L |
| Dimension (LxWxH) | 2180x1930x1300mm | 2715x2211x1300mm |
| Empty Weight | 1100Kg | 1720Kg |
| Test pressure | 35Kpa | |
| Inlet, Outlet | DN40/DN50 | |
| E-Vent, Free Vent | 2", 3", 4" | |
| Application | Aviation jet, fuel, petrol, oil, diesel, def, coolant, Any liquid, other than a flammable liquid under normal temperature. | |

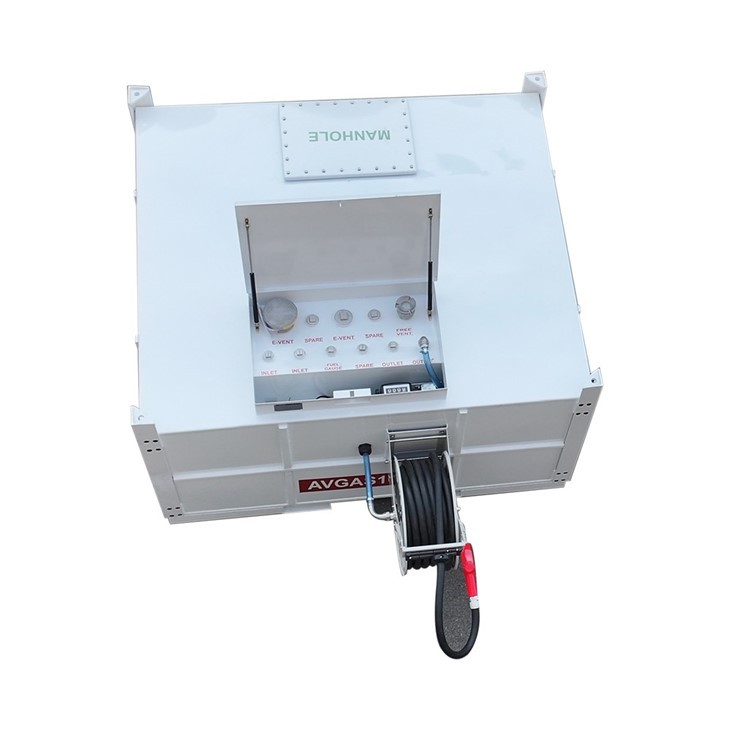

Tank Connections
Uses
Automobile emergency backup: When traveling long distances, off-road expeditions or driving in remote areas, it can be used as a spare fuel tank to prevent the vehicle from running out of fuel, provide additional fuel reserves for the vehicle, and ensure the smooth progress of the journey.
Outdoor power equipment: used to store and transport fuel for outdoor power equipment such as generators, lawn mowers, electric saws, snow blowers, etc., so as to facilitate the use of these equipment in outdoor places far away from gas stations.
Ship and water equipment: It can be used as a spare fuel tank for water equipment such as small ships, yachts, jet skis, etc., to provide additional fuel supply and increase endurance.
Industrial and engineering applications: In some industrial sites or engineering construction, it is used for temporary storage and supply of fuel to provide power support for construction equipment, engineering machinery, etc.
Application
- Construction industry: On construction sites, it is used to provide fuel for various construction equipment such as cranes, excavators, loaders, etc. to ensure the continuity of construction.
- Transportation industry: It can be set up in logistics centers, bus stations, long-distance bus stations and other places to refuel trucks, buses, long-distance coaches and other vehicles.
- Agricultural field: It is used in farms to store and supply fuel for agricultural machinery such as tractors and harvesters to meet the seasonal and high-intensity operation needs of agricultural production.
- Emergency rescue field: In natural disasters or emergency situations, such as earthquakes, floods, fires, etc., it serves as a temporary fuel supply point to provide fuel support for rescue vehicles, equipment and generators.
About Sumac
FAQ
Q. Can we specify the colour of the tanks and are they painted or powder coating paint?
A. Yes, can specify colour, powder coating paint.
Q. Is there any way to check for fluid between the skins (1st and 2nd layer)?
A. Oil tank with inspection port.
Q. Is there a suction tube on the outlet port for evac of the waste oil?
A. Yes.
Q. For the secondary sealing capacity, whether to increase the capacity of 10% on the basis of the inner tank capacity?
A. Yes.
