Introduction

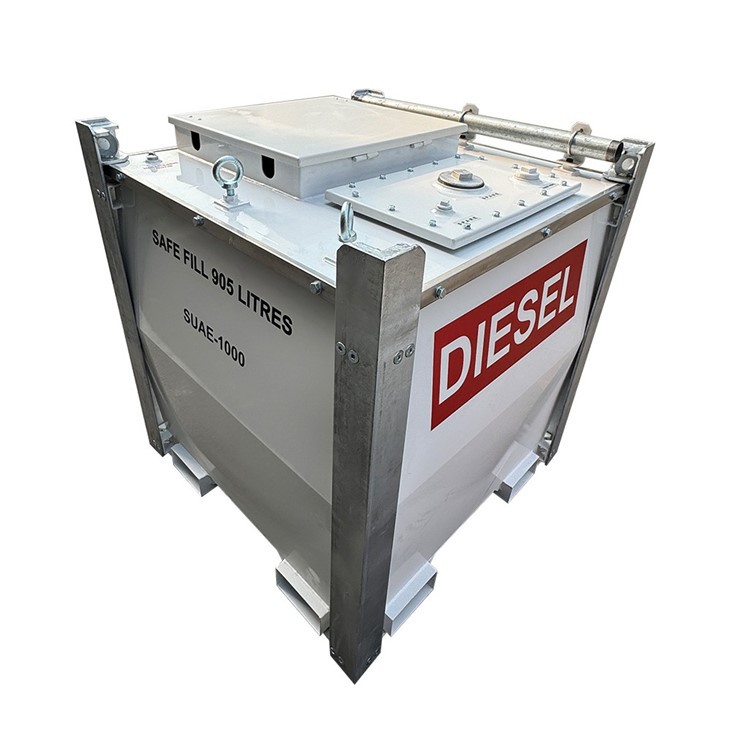

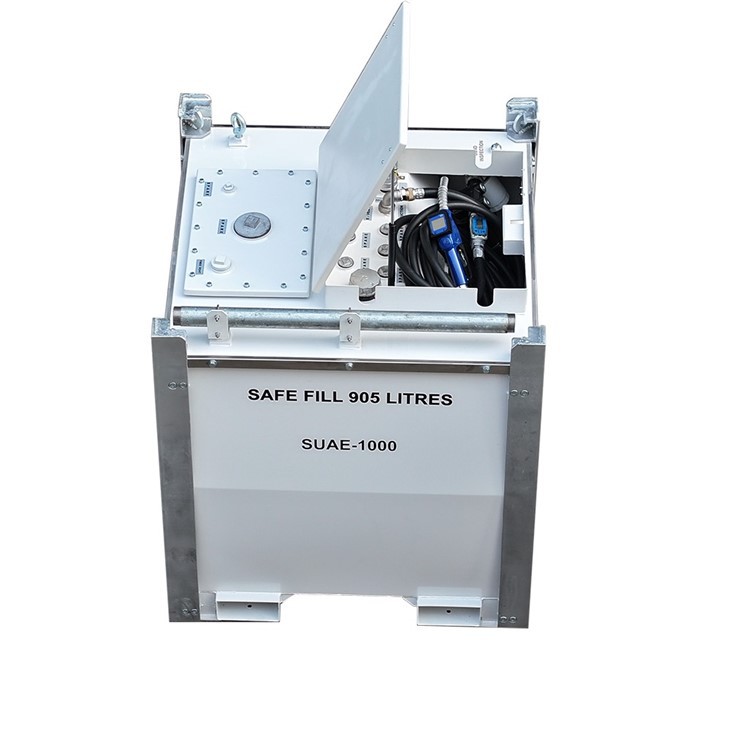

Sumac SUAE series cube self bunded tanks come in various sizes. We have a Fuel Tank suitable for all your fuel storage requirements. Sumac's new fuel cube tanks come with lockable containments to keep your parts and connections secure and out of the elements. Tanks also come equipped with convenient lifting points to simplify crane handling and positioning your tank.
Our double-walled tanks are designed as integral secondarycontainment and therefore do not require independent bunds forleak containment.Double-walled tank = SFL primary tank +interstitial space + secondary external tank.
Highly secure and extremely hard-wearing, our Fuel Cubes Tanks are 110% bunded and fully compliant with current environmental regulations.
Technical Parameters
| Model | SUAE-1000 | SUAE-2000 | SUAE-3000 | SUAE-4500 | SUAE-7000 |
| Capacity (Normal/Safe fill (95%)) | 950/905 L | 2063/1960 L | 2850/2710 L | 4460/4240 L | 7200/6840 L |
| Dimension (LxWxH) | 1145x1145x1275mm | 2245x1145x1275mm | 2245x1520x1275mm | 2245x2312x1275mm | 3945x2210x1195mm |
| Empty Weight | About 450Kg | About 750Kg | About 868Kg | About 1155Kg | About 2280Kg |
| Material | Carbon steel | ||||
| Tank type | Storage and dispensing | ||||
| Testing pressure | About 35Kpa | ||||
| Fill Dip / Fuel Gauge, Inlet, Outlet | DN40/DN50/80/DN100 | ||||
| E-Vent, Free Vent | DN50/DN80/DN100 | ||||
| Logo/Packing | If you need to customize the Logo, please send an inquiry | ||||
| Application | Fuel, petrol,boil, diesel, coolant, Any liquid, other than a flammable liquid under normal temperature. | ||||
Tank Connections

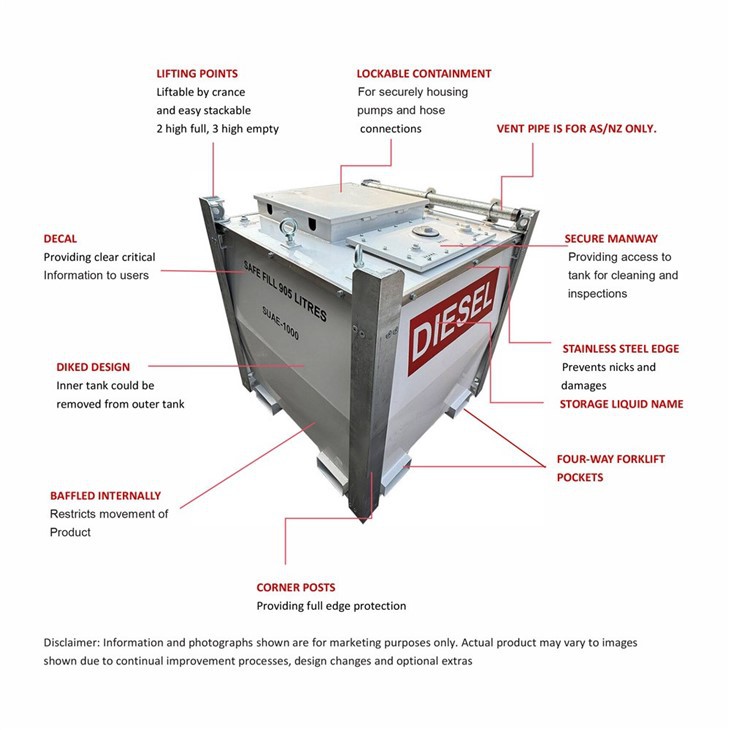

Features and Benefits of Fuel Cube
- Compact and economical: Fuel cube is a compact and economical fixed fuel tank that can store a large amount of fuel in a limited space, reducing site occupation costs and equipment acquisition costs.
- Flexible and maneuverable: It has four forklift slots when empty, which is convenient for quick movement and relocation. It can be flexibly deployed in different locations according to actual needs to meet temporary or mobile fuel supply needs.
- Safe and reliable: It adopts double-wall structure with 110% anti-leakage protection. The built-in weather-resistant containment eliminates the need for additional anti-spill trays and basins, reduces the risk of fuel leakage, and complies with relevant safety regulations such as UL 142, ULC-S 601-07 and NFPA 30A.

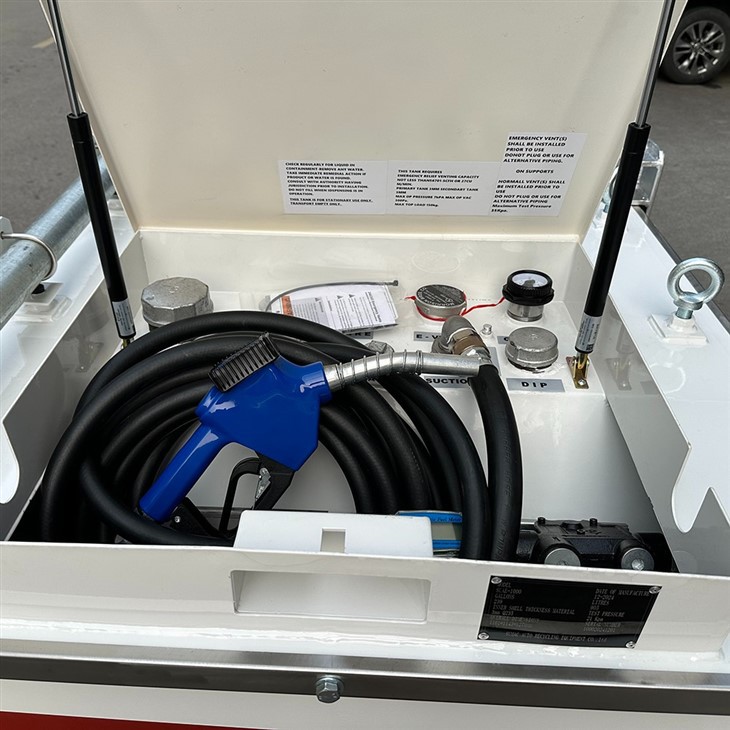

- Versatile: Equipped with a lockable equipment cabinet, the equipment and ports are safe and reliable, and refueling can be carried out through a secure hose interface when the cabinet is locked. It also has a removable liner for daily cleaning, maintenance and inspection.
Why Choose Us
FAQ
Q. Can we specify the colour of the tanks and are they painted or powder coating paint?
A. Yes, can specify colour, powder coating paint.
Q. Is there any way to check for fluid between the skins (1st and 2nd layer)?
A. Oil tank with inspection port.
Q. Can you confirm if the tanks are supplied with, dip stick & the vent?
A. Yes.
Q. Is there a suction tube on the outlet port for evac of the waste oil?
A. Yes.
Q. For the secondary sealing capacity, whether to increase the capacity of 10% on the basis of the inner tank capacity?
A. Yes.
