Introduction

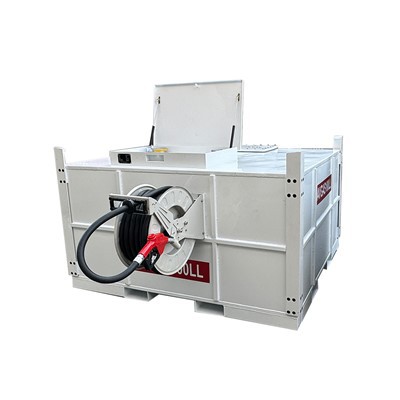

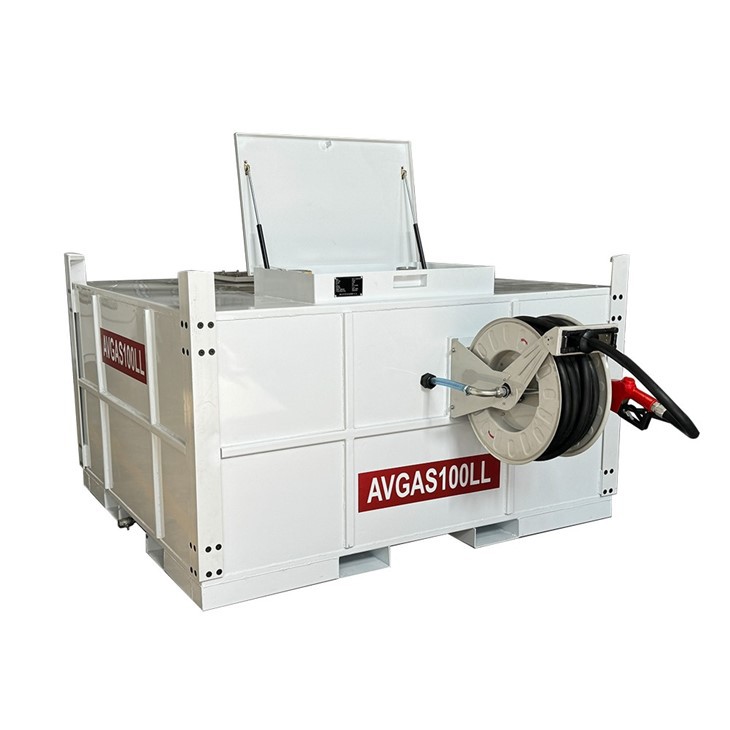

SUMAC PL Series "Cube Tank" are a solution for the storage and dispensing of diesel, gasoline and lubricant oils from 1000L to 10000L.
PL Series tank offers a flexible solution to storing combustible liquid (Diesel, gasoline, oil, coolant, etc. ) , as well as improving fuel dispensing and management solutions, A practical stationary design ensures a fast, easy and convenient installation in any location, indoors or outdoors.
With its fully transportable design and ability to fuel multiple pieces of equipment simultaneously. A place, fill-and-pump installation process offering versatility and speed on commissioning,
The freestanding "cube style" design allows for 360° tank viewing and inspection. High-grade powder coating paint finish ensures longer durability the elements.
Durable stationary design with double-wall containment for added safety and security.
Technical Parameters
| Model | PL-3500 | PL-5000 |
| Material | Carbon steel | |
| Tank type | Double-walled cube tank | |
| Capacity (Normal/Safe fill (95%)) | 3500/3325 L | 5000/4760 L |
| Dimension (LxWxH) | 2180x1930x1300mm | 2715x2211x1300mm |
| Empty Weight | 1100Kg | 1720Kg |
| Test pressure | 35Kpa | |
| Inlet, Outlet | DN40/DN50 | |
| E-Vent, Free Vent | 2", 3", 4" | |
| Application | Aviation jet, fuel, petrol, oil, diesel, def, coolant, Any liquid, other than a flammable liquid under normal temperature. | |

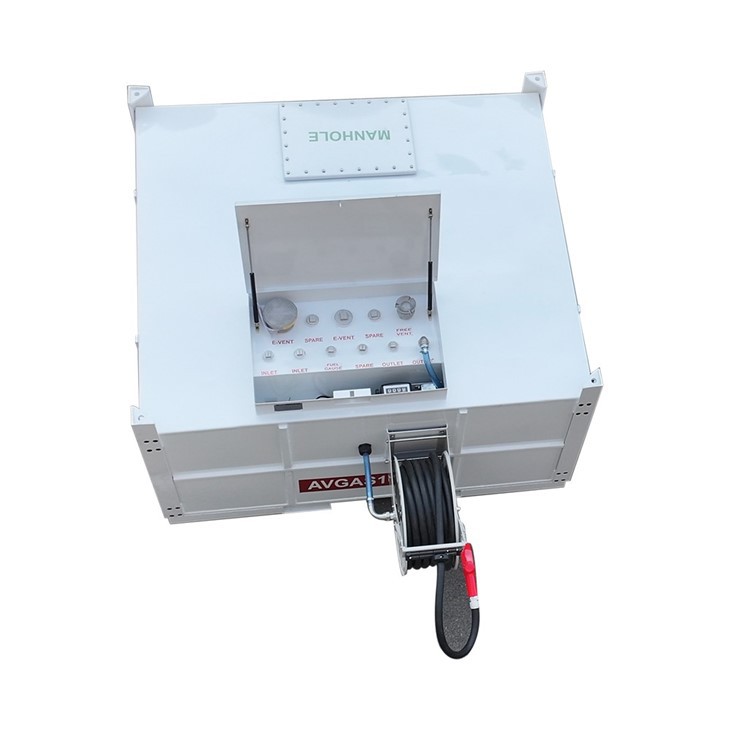

Tank Connections

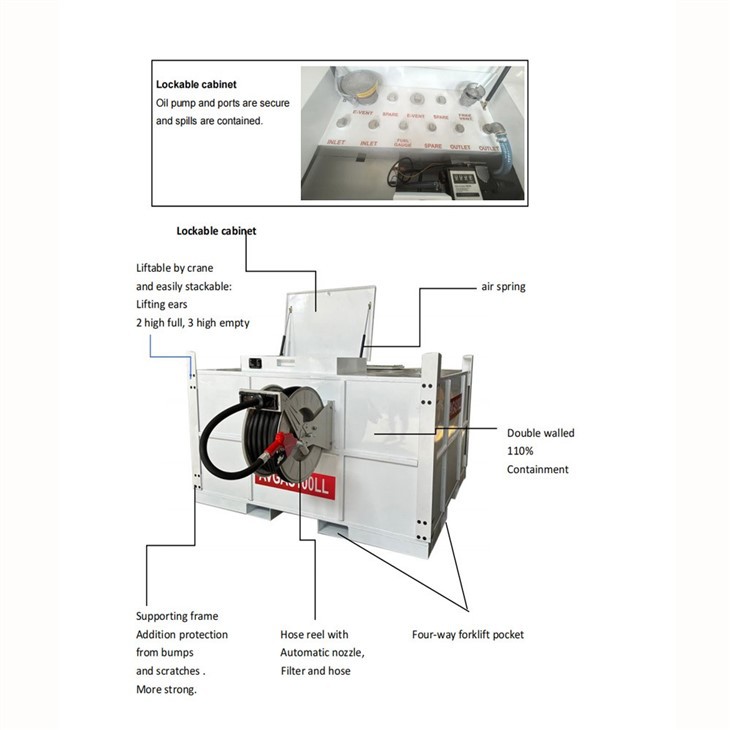

features
· Meet strict quality standards.
· All seams are welded to exacting standards.
· With forklift pockets.
· The tanks can fit with SUMAC supplied free vent, emergency vent and dipstick/fuel gauge.
· Designed to be stacked for storage and transport empty, and with 1pc lockable lid.
· Supplied with all required statutory decals. We can also customize logo according to customer needs.
· Can be lifted via forklift to ensure ease of access and maneuverability, as well as lifting eyes at each corner.
· With manhole - Easy maintenance and cleaning of carbon steel inner tank.
Application
About Sumac
FAQ
Q. What is your standard configuration for connections
A. Fill Dip,Inlet,Fuel Gauge,Outlet: DN25, or customized.
Q. Can we specify the colour of the tanks and are they painted or powder coating paint?
A. Yes, can specify colour, powder coating paint.
Q. Is there any way to check for fluid between the skins (1st and 2nd layer)?
A. Oil tank with inspection port.
Q. Can you confirm if the tanks are supplied with, dip stick & the vent?
A. Yes.
Q. Is there a suction tube on the outlet port for evac of the waste oil?
A. Yes.
Q. For the secondary sealing capacity, whether to increase the capacity of 10% on the basis of the inner tank capacity?
A. Yes.
