Introduction

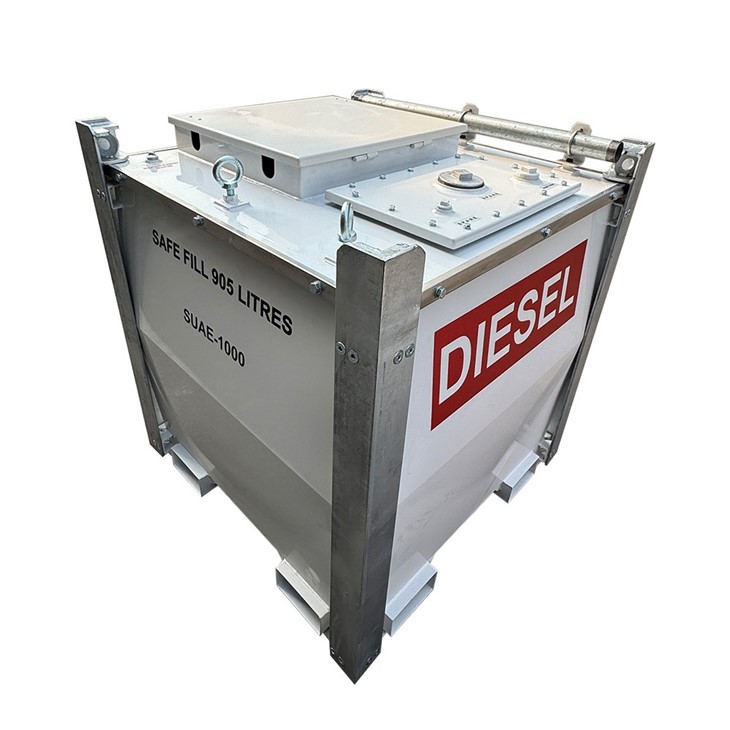

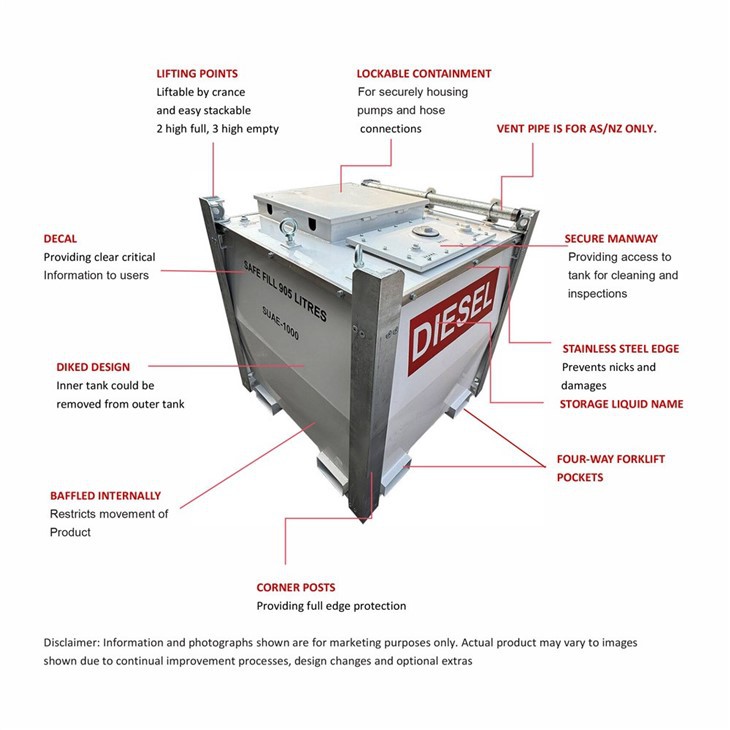

Sumac SUAE series cube self bunded tanks come in various sizes. We have a Fuel Tank suitable for all your fuel storage requirements. Sumac's new fuel cube tanks come with lockable containments to keep your parts and connections secure and out of the elements. Tanks also come equipped with convenient lifting points to simplify crane handling and positioning your tank.
Our double-walled tanks are designed as integral secondarycontainment and therefore do not require independent bunds forleak containment.Double-walled tank = SFL primary tank +interstitial space + secondary external tank.
Highly secure and extremely hard-wearing, our Fuel Cubes Tanks are 110% bunded and fully compliant with current environmental regulations.
Technical Parameters
| Model | SUAE-1000 | SUAE-2000 | SUAE-3000 | SUAE-4500 | SUAE-7000 |
| Capacity (Normal/Safe fill (95%)) | 950/905 L | 2063/1960 L | 2850/2710 L | 4460/4240 L | 7200/6840 L |
| Dimension (LxWxH) | 1145x1145x1275mm | 2245x1145x1275mm | 2245x1520x1275mm | 2245x2312x1275mm | 3945x2210x1195mm |
| Empty Weight | About 450Kg | About 750Kg | About 868Kg | About 1155Kg | About 2280Kg |
| Material | Carbon steel | ||||
| Tank type | Storage and dispensing | ||||
| Testing pressure | About 35Kpa | ||||
| Fill Dip / Fuel Gauge, Inlet, Outlet | DN40/DN50/80/DN100 | ||||
| E-Vent, Free Vent | DN50/DN80/DN100 | ||||
| Logo/Packing | If you need to customize the Logo, please send an inquiry | ||||
| Application | Fuel, petrol,boil, diesel, coolant, Any liquid, other than a flammable liquid under normal temperature. | ||||

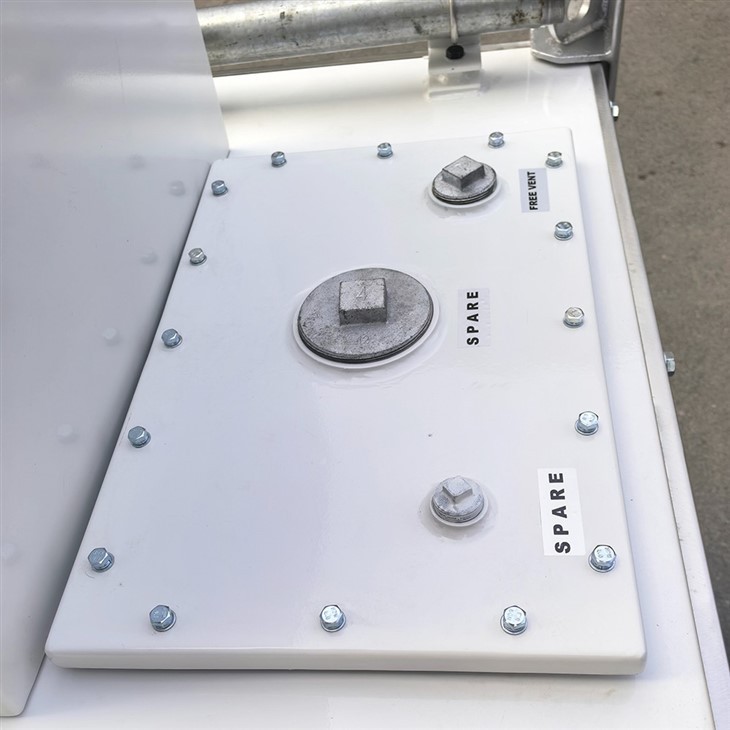

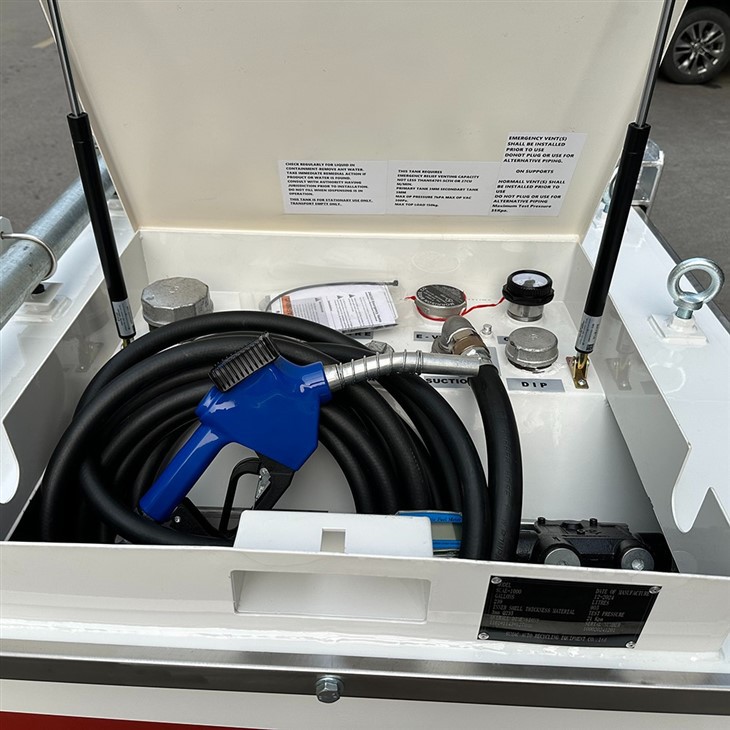

Tank Connections
Why Choose Us
Precautions
- Safe use: When using metal steel portable fuel tanks, strictly abide by the safety operating procedures, avoid using or storing near open flames, high temperatures or flammable materials, and prevent fire or explosion accidents.
- Static electricity protection: Since metal materials are prone to static electricity, during refueling and use, take anti-static measures, such as grounding the fuel tank and using an anti-static refueling gun, to prevent static electricity from causing fuel fire or explosion.
- Regular inspection: Check the fuel tank regularly to see if there is leakage, deformation, corrosion, etc. If there is a problem, replace or repair it in time to ensure the safety performance of the fuel tank.
- Correct storage: When storing the fuel tank, choose a well-ventilated, dry, and cool place, away from fire and heat sources, and seal the fuel tank to prevent fuel volatilization and impurities from entering.
FAQ
Q. Can we specify the colour of the tanks and are they painted or powder coating paint?
A. Yes, can specify colour, powder coating paint.
Q. Is there any way to check for fluid between the skins (1st and 2nd layer)?
A. Oil tank with inspection port.
Q. Is there a suction tube on the outlet port for evac of the waste oil?
A. Yes.
Q. For the secondary sealing capacity, whether to increase the capacity of 10% on the basis of the inner tank capacity?
A. Yes.
