Introduction

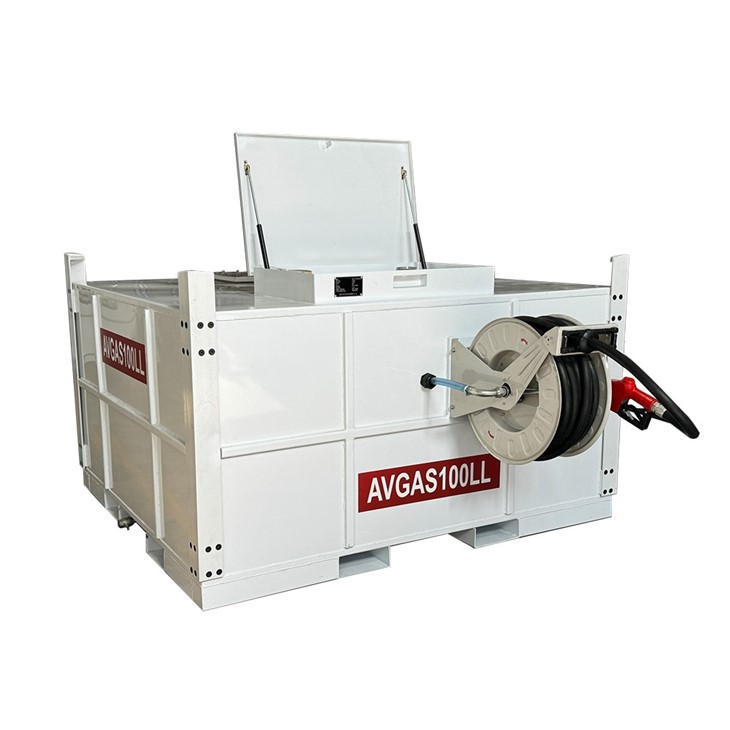

SUMAC PL Series "Cube Tank" are a solution for the storage and dispensing of diesel, gasoline and lubricant oils from 1000L to 10000L.
PL Series tank offers a flexible solution to storing combustible liquid (Diesel, gasoline, oil, coolant, etc. ) , as well as improving fuel dispensing and management solutions, A practical stationary design ensures a fast, easy and convenient installation in any location, indoors or outdoors.
With its fully transportable design and ability to fuel multiple pieces of equipment simultaneously. A place, fill-and-pump installation process offering versatility and speed on commissioning,

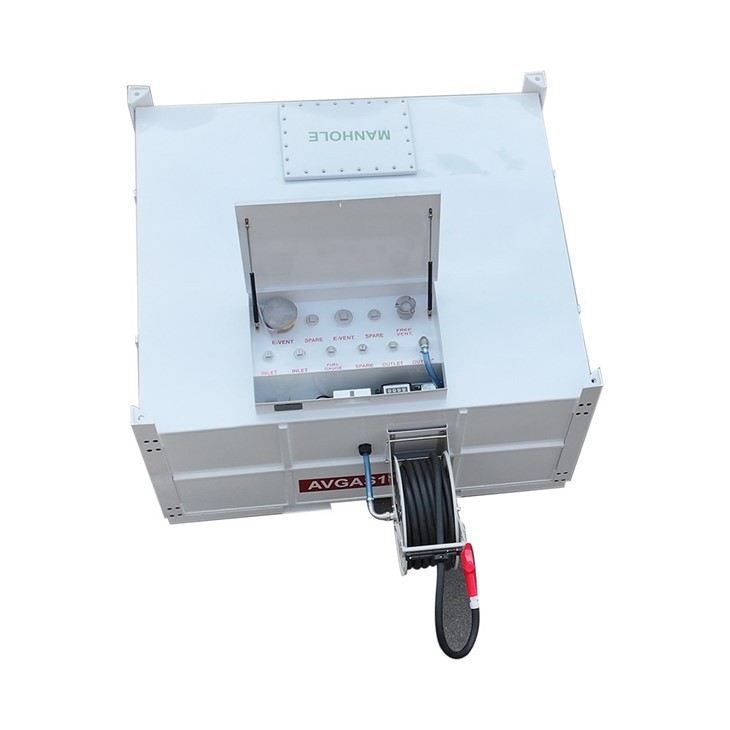

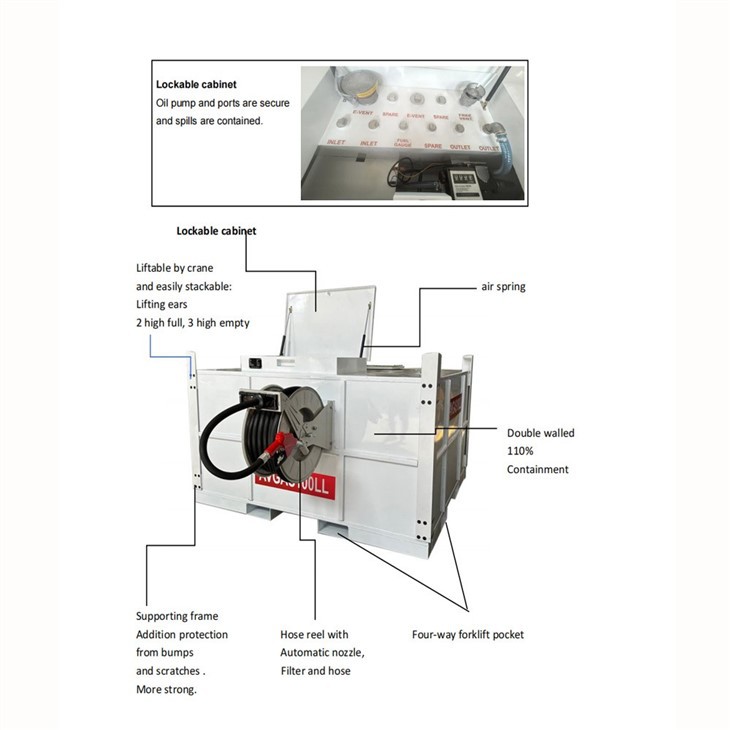

Fitted with an anti-vandal lockable door, complete with internal hinges and gas-strut opening, the Fuel Cube's all-steel construction provides unrivalled strength and security. Generator flow and return pipes are fitted as standard, and complemented by a wide choice of dispensing options to match your needs exactly.
The freestanding "cube style" design allows for 360° tank viewing and inspection. High-grade powder coating paint finish ensures longer durability the elements.
Durable stationary design with double-wall containment for added safety and security.
Technical Parameters
| Model | PL-3500 | PL-5000 |
| Material | Carbon steel | |
| Tank type | Double-walled cube tank | |
| Capacity (Normal/Safe fill (95%)) | 3500/3325 L | 5000/4760 L |
| Dimension (LxWxH) | 2180x1930x1300mm | 2715x2211x1300mm |
| Empty Weight | 1100Kg | 1720Kg |
| Test pressure | 35Kpa | |
| Inlet, Outlet | DN40/DN50 | |
| E-Vent, Free Vent | 2", 3", 4" | |
| Application | Aviation jet, fuel, petrol, oil, diesel, def, coolant, Any liquid, other than a flammable liquid under normal temperature. | |
Tank Connections
features
- Available in 1000 litre to 10000 litre capacities.
- All-steel construction for unrivalled strength and security
- 110% bunded, fully compliant with current environmental regulations
- Ideal for refuelling small plant and machinery, groundcare equipment, generators and traffic control equipment
- Compact and stackable design
- Fuel Cube can be lifted full of fuel using integrated lifting eyes or forklift pockets
- Limited warranty for peace of mind
Application
About Sumac
FAQ
Q. What is your standard configuration for connections
A. Fill Dip,Inlet,Fuel Gauge,Outlet: DN25, or customized.
Q. Can we specify the colour of the tanks and are they painted or powder coating paint?
A. Yes, can specify colour, powder coating paint.
Q. Is there any way to check for fluid between the skins (1st and 2nd layer)?
A. Oil tank with inspection port.
Q. Can you confirm if the tanks are supplied with, dip stick & the vent?
A. Yes.
Q. Is there a suction tube on the outlet port for evac of the waste oil?
A. Yes.
Q. For the secondary sealing capacity, whether to increase the capacity of 10% on the basis of the inner tank capacity?
A. Yes.
