1. Introduction
★ SUMAC has developed cost effective systems to store and manage hazardous and non-hazardous luquids extracted from ELVs.
★ The tanks are designed to meet international standards for storing hazardous and flammable liquids.
★ All connections are through the top and the double wall design makes them self bunded, eliminating the chance of leakage into the environment.
★ They have a unique outlet arrangement that draws from the floor of the inner preventing build up of any type of sediment.
★ Their cube design makes them a practical solution for storing up to 1000 liters each and can be linked together to store larger quantities.
2. Data sheet

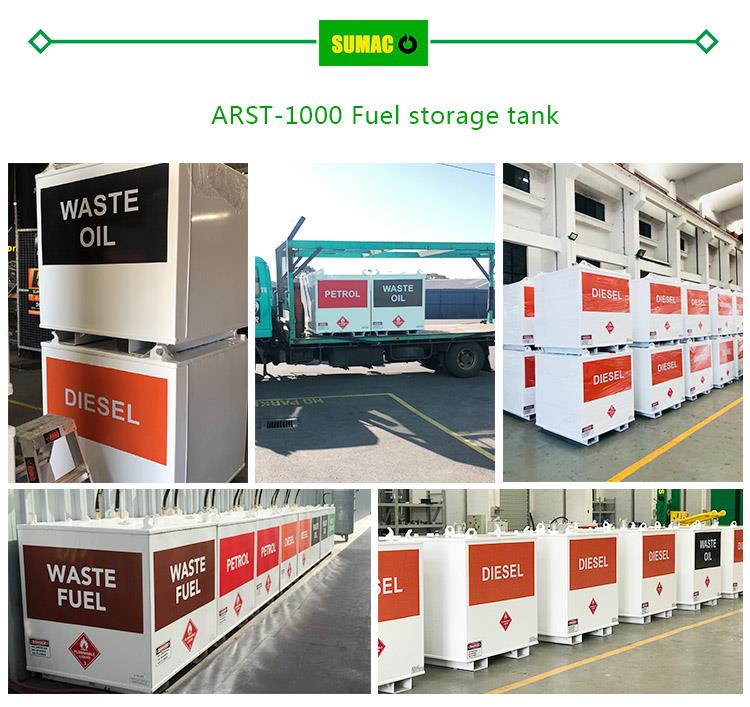

Model | ARST -1000 |
Name | Steel tanks for flammable and combustible liquids |
Material | Carbon steel |
Tank type | stationary |
Size | 1100x1100x1350mm |
Volume | 1000litres |
Empty Weight | about 520kg |
Test pressure | about 35Kpa |
Feed/Discharging | 1inch |
Application | Waste fuel, petrol, waste oil, diesel, coolant, Any liquid, other than a flammable liquid under normal temperature. |

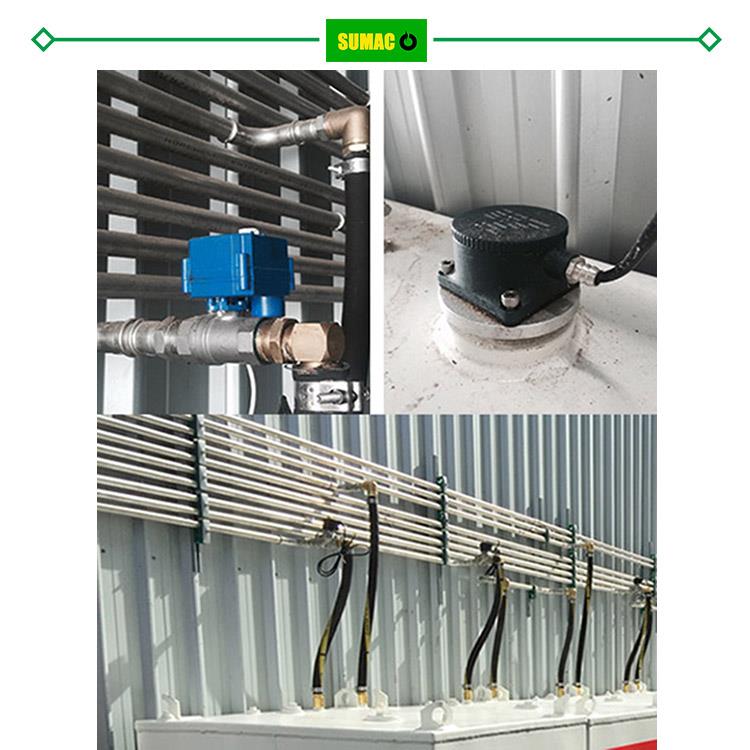

● The tanks can fitted with SUMAC supplied level sensors and electric ball valves which are connected to SUMAC's computor controlled level management and monitoring system.
● The systems prevents overflows and sends alerts to those responsible.
● Pumps can be provided and integrated into the system to manager the dispensing of the fluids
● A total solution for storing, managing and dispensing recycled fuel.
3. Packaging
